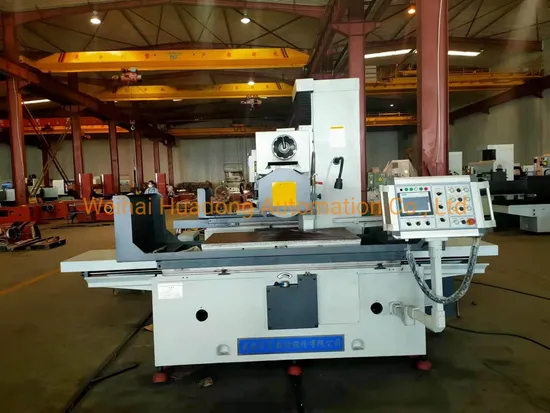

M7130d M7150d PLC Type Head Moving Surface Grinding Machine

Product Description

1.Machine Features 1. The overall structure of the machine adopts T-shaped layout, the grinding head body moves forward and backward along the pallet guide rail (Z axis), the pallet moves up and down along the column guide rail (Y axis), the table moves about along the bed guide rail (X axis), and the spindle rotates clockwise.
2. The machine bed is a box structure, the internal reinforcement layout is reasonable, so that its strength is high and stability is good. The working table moves along the guide rail of the bed and can carry out stepless speed regulation.
3. The column is installed on the bed body, and a drag plate is arranged on the guide rail of the column. The annular gear ring mechanism with vertical feed is installed in the middle of the guide rail, which has high transmission accuracy, good interchangeability and convenient maintenance. The center error between the lead screw and the reducer shaft can be compensated by the cross joint in the transmission process.
4. Spindle bearing adopts bobbin structure, strong impact resistance, can be used for heavy duty grinding.
5. The horizontal movement of grinding head is hydraulic and manual, which is easy to operate. The vertical movement of the grinding head can be carried out in two ways: quick lifting and manual feeding, which is convenient and accurate.
6. The cooling water tank adopts funnel precipitation separation structure, which is beneficial to improve the surface quality of grinding.
7. Each guide rail adopts forced lubrication mode to ensure that the guide rail works under the protection of oil film and prolong the service life of machine tool.
2.Details parameters

M71 series parameters
Specifications		M7130A	M7140	M7150A	M7160	M7170A	M7180
Max.longitudinal travel	mm	1100	1100 1700 2300	1100 1700 2300	1100 1700 2300	1350 1700 2300	1700 2300 3100
Min.longitudinal travel	mm	200	200	200	200	200	200
Max. distance from spindle center to table	mm	580
Longitudinal feed	m/min	7~23
Table T slot No.*width	mm	3*18		3*22
Cross feed continnuous feed	m/min	0.5-4.5
Cross feed intermittent speed	mm/t	990
Cross feed Manual feed	mm/div	3-30
Wheel head vertical moving Rapid feed	mm/min	400
Wheel head vertical moving Manual feed	mm/gra.	0.005
Wheel head per revolution feed of handwheel	mm/rev.	0.645		0.515	0.645	0.515	0.515
wheel Speed	Rpm	1440
wheel size	mm	400×40×127		400*40*203	400*40*127	400*50*203	450*63*203
Spindle motor	Kw	7.5		7.5	7.5	11	15
total rated power	KW	11	11	12.25	13.75	19.75	28.75
Max. table load (include chuck)	Kg	470	630 100 1380	700 1240 1410	850 1150 1500	1100 1400 1800	1600 2000 3000
Gross weight	Kg	3500	470 6600 8000	5000 7100 8500	5000 6900 8100	5600 6600 7200	9500 11000 13000

3.standard accessories
Optional accessories you can choose
Certificates
Top view of surface grinder workshop
Our Advantages
1.Factory direct sales, product quality and after-sale can be effectively guaranteed
2.Big listed company who has more than 50 years manufacture experience,more than 30years international trade experiences.
3.we have been cooperating with many companies abroad,such as KNUTH ,OPTIMUM in Germany,BERNARDO in Austria,MSC, GRIZZLY in USA and some other companies.The quality of our machines has gotten good reputation from them
After Sales Service
1. During the warranty period of the machine tool due to design, manufacturing, quality of parts and other reasons caused by the fault, free treatment or replacement of new parts.
2. After the warranty period, lifelong paid maintenance and service will be provided.technical support forever.
3. Provide spare parts and spare parts at preferential prices for a long time.
4.the warranty is one year after machine out of our company.
