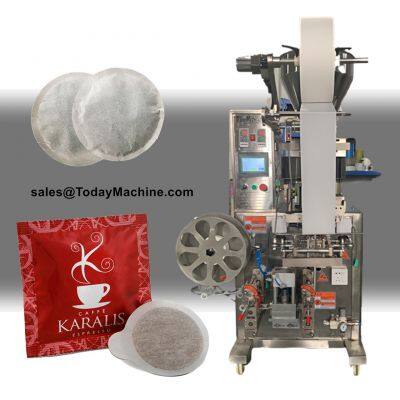

Tea Bag Packing Machine
A tea bag packaging machine is a type of machine used in the tea industry to package tea bags. This machine is designed to automate the process of filling tea bags with loose tea leaves or tea dust, sealing them, and cutting off any excess material.
The machine typically works by drawing a measured amount of tea leaves into the tea bag, forming it into a flat, rectangular shape, and sealing the edges of the bag. Some machines also add a tag and string to the tea bag before it is sealed. The machine can process a large number of tea bags in a short period of time, making it ideal for commercial tea production.
Irregular shaped bag packing machine price
Accurate filling: These machines can accurately measure and fill a predetermined amount of tea leaves into each tea bag, ensuring consistency in tea flavor and strength.
Sealing mechanism: The machine uses a heat-sealing mechanism to seal the edges of the tea bag, preventing the tea leaves from falling out and keeping them fresh.
Automatic tag and string application: Some machines are equipped with an automatic tag and string application feature, which adds a tag and string to each tea bag before it is sealed. This feature can save time and labor costs by eliminating the need for manual tagging and stringing.
INDUSTRIES AND APPLICATIONS
The applications of a tea bag packaging machine are primarily in the tea industry, where they are used to produce tea bags for sale to consumers. Tea bag packaging machines are ideal for tea producers who want to mass-produce tea bags in large quantities. The machines can be used to package a wide variety of tea types, including black tea, green tea, herbal tea, and flavored tea. Some tea bag packaging machines can also be used to package other products, such as coffee, herbs, and spices.
TECHNICAL SPECIFICATION
Model
| VFFS-R
| VFFS-PTL
| VFFS-TL
| VFFS-TLO
|
Function
| Coffee Pod
| Pyramid bag
+thread
+Label
| Inner bag
+thread
+Label
| Inner bag
+thread
+Label
+outer bag
|
Packing material
| Filter paper
Non-woven
Plastic
| Nylon
PLA
Non-woven
PET
| Filter paper
Plastic
| Filter paper
Plastic
|
Output
(Bags/min)
| 30-60
| 40-60
| 30-60
| 20-50
|
Max.dosage
| 1-10g
10-50g
| 10ml
| 15ml (5g)
| 15ml (5g)
|
Film width
(mm)
| –
| 120 140 160
| Inner 100-160
| Inner 100-160
Outer 120-200
|
Bag
(L*W;mm)
| Round
Custom design
| Pyramid
(40-80)*(60-80)
| 3 side
(50-70)*(50-80)
| 3 side
(50-70)*(50-80)
|
Label/Tag
(L*W;mm)
| –
| –
| (20-40)*(40-55)
| (20-40)*(40-55)
|
Power
(Kw)
| 1.5
| 2.2
| 3
| 3.5
|
Dimension
(mm)
| 950x1250x1850
| 1330x1470x2120
| 950x1150x1850
| 800x1750x1950
|
Weight
(Kg)
| 380
| 480
| 450
| 500
|
>>
