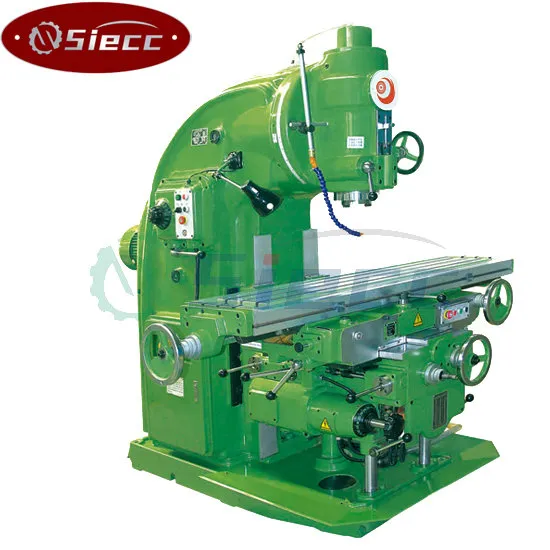

Vertical Milling Machine/Knee Type Milling Machine X5032

Product Description

1. VERTICAL MILLING MACHINE X5032 is easy to operate, reliable performance.
2. X5032 Vertical milling machine used in all kinds of mechanical processing department.Processing all kinds of flat, grooved ,gear.
3.Configuration such as rotary table, dividing the first milling machine accessories, can further expanding the scope of the machine tool use.

Specification	Unit	X5032	X5032B	X5032H	X5032BH
Table size	mm	320X1325	320X1600	320X1325	320X1600
T-slots(NO./Width/Pitch)		3/18/70
Longitudinal travel (manual/auto)	mm	700/680	900/880	700/680	900/880
Cross travel (manual/auto)	mm	255/240
Vertical travel (manual/auto)	mm	370/350		460/440
Rapid feed speed X/Y/Z	mm/min	2300/1540/770
Spindle bore diameter	mm	29
Spindle taper		7:24 ISO50
Spindle speed range	r/min	30-1500
Spindle speed step	steps	18steps
Stroke of spindle quill	mm	70
Max.swivel angle of vertical milling head		±45°
Distance between spindle nose and table surface	mm	30-400		30-490
Distance between spindle axis and column guideway	mm	350
Feed motor power	kw	1.5
Main motor Power	kw	7.5
Overall size(L×W×H)	mm	2294×1770×1904	2294×2050×1904	2294×1770×2084	2294×2050×2084
Net weight	kg	2900/3200	3000/3300		3100/3400

Standard Accessories of VERTICAL MILLING MACHINE X5032

1	Crank
2	Double head wrech	13*14
3	Double head wrech	27*30
4	Double head wrech	32*36
5	Inner hexagon spanner	5
6	Inner hexagon spanner	8
7	Inner hexagon spanner	10
8	ISO 50 Milling arbor
9	Milling Bar
10	Push grease gun
