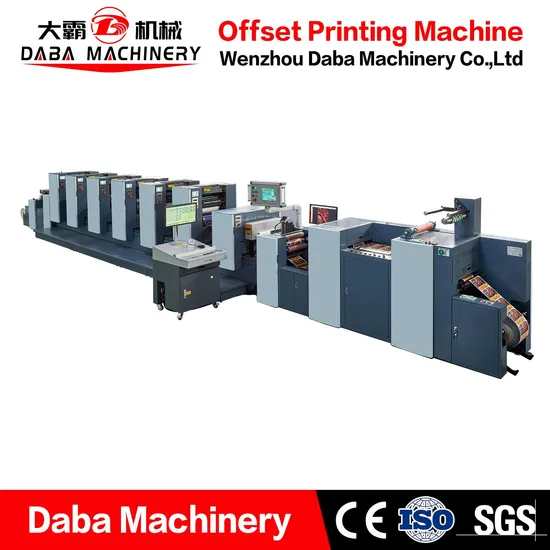

4 Colour Offset Printing Machines UV Paper Offset Label Printing Machine Roll to Roll

Product Description

Main Features
Intermittent Label Offset Printing Machine adopts latest servo control system which can ensure the material nip steady and accuracy. It can free from the printing roller change. The operation of this machine is faster, convenient and simple. PS plate intermittent printing hits the high level label demands from short run to long run. It's the best choice for printing highest quality labels with lowest production cost.

Machine Parameter
Model	DBJY-320	DBJY-450
Printing speed	50-180 rpm/min	50-150 rpm/min
Printing color	4-10colors	4-10colors
Max. printing length	350mm	380mm
Max. web width	320mm	470mm
Max. printing width	300mm	450mm
Max. unwinding diameter	700mm	700mm
Max. rewinding diameter	600mm	600mm
Power supply	3 phase 380V	3 phase 380V
Total power	33.6kw(without UV power)	40kw(without UV power)
Dimensions(L×W×H)	10550×1600×1800mm	11150×1700×1800mm
Main machine weight	about 9.5t	about 11.5t

Standard Configuration
1.Unwinding Unit
2.Web Guide	control paper move straightly
3.Heavy Offset Printing Unit	Printing unit: adopting high quality and heavy offset printing unit. Assembled with 19 pieces of ink rollers,4pcs of Form Rollers and 4pieces of Water rollers (alchohol dampening system), has nice inking system which can largely avoid gear mark and ghost image. The fine and accurate printing would never be reached by flexo/letterpress machine.
4.Shaftless Driving System	Every printing unit run by an independent servo motor, 15 sets of servo motors in total for whole machine (6color) to ensure the exact color registration during high speed operation. The vertical and horizontal motions of every printing unit are all controlled by independent motor (ease the laboring and reduce the waste).
5.Video Inspecting System	By video still system, the machine can regulate vertical & horizontal registering without stopping, it improves the printing quality and increases the producing capacity.
6.Touch Screen Control System	Touch LCD screen, faster CPU, 12inch operating display, independent touch screen in each printing unit, powerful human-computer dialogue system, multi-guide inspecting display interface, instant alarm signal, makes operation much easier and more efficient.
7.Printing Unit Control Pannel
8.Computer Ink Control System
9.Traction Unit
10.Quality Checking Unit
11.Lamination Unit
12.Rewinding Unit
OPtional Configuration
1.Second Pass Register Sensor	Super large printing area of 300x350mm, the max repeat length can go up to 350mm and the max running speed can be 63m/min. By high-precision photocells, the machine ensures multi-register print on both side, make the possibility of label variety.
2.Cold Foiling Unit	Inline cold foiling, has the characteristic of fast speed, high efficiency, increase the decorative effect for color and graphic.
3.Rotary die cutting station	One big magnetic cylinder used in this machine, largely saves the tooling cost. Different die-cutting job can be achieved by changing the flexible die.
4.Flexo UV Varnishing Unit with Chamber System	Flexo UV varnishing unit (both solid and spot) makes the printing more shining and attractive.
5.Delam/Relam Unit	Delaminate the adhesive label , then printing on glue surface and re-laminating.
6.Screen Printing Unit	Inline flat screen printing, has characteristic of thick ink layer, strong relief perception.

Wenzhou Daba Machinery Co., Ltd.as a professional manufacturer of all kinds of label equipment, was established more than ten years ago. Our company consists of Technical Development Department, Manufacturing Department, Domestic and International Sales Department and After-Sales Service Department.
Our main products include: Self adhesive label production line (adhesive label flexo printing machine, label die cutting machine, label slitting machine), laminating and coating machine (adhesive label coating machine) rotogravure printing machine, high speed rotogravure printing machine, PVC shrinkable label machine (PVC sleeve label sealing machine, PVC sleeve label inspection machine, label cutting machine) slitting machine, gift paper wrapping machine, gift paper rewinding machine, wallpaper wrapping machine, etc.
For over 10 years, our company has been a leader in Chinese label equipment area. Especially, the self-adhesive label production line are leading.
Now, we have got ISO9001 Quality Management System Certificate and some products have got CE Certificate.
Through our continuous research and development, advanced skills, and a strong commitment to customer service, we have firmly established ourselves as a dependable supplier of China. No matter whether you are looking for a single machine or a whole production line, you can get outstanding machines and know-how results from our technical department.
Every DaBa machine is quality proven, superior in design and produced as per the highest quality standards. Before leaving our factory, it is tested and retested for performance, productivity and durability. Because of good quality and service, we have won a good reputation among domestic and international customers.
Our products sell well in Asia (such as India, Thailand, Vietnam, Indonesia, Malaysia, Sri Lanka), the Middle East (Iran, Pakistan), Europe (Russia, Bulgaria, Croatia, Rumania, Spain, Italy), Africa (Nigeria, Guinea, Congo), North America and South America.
We hope to establish good and long-term business cooperation with customers from all over the world. If you have any inquiry about our machines, please feel free to contact us.
FAQ FOR DBRY-320-5C Label Flexo Printing Machine
Q: What's your delivery date?
A: Usually finish the production within 30days after your 30% advanced payment, actually need to check according our stock & production plan.
Q: Terms of payment?
A: We accept T/T, 30% in advance and 70% balanced against B/L copy.
We accept L/C at sight.We accept Cash.

Q: How many days will you finish installing ?
A: We will finish installation and training within 15days.
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from finished installation.
Q: How could we do after one year warranty period?
A: We also can do service for you, however, if require overseas service, you need pay salary to our technician 100 USD/day.
Q: How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.
Q: How many worker do we need running those machines?
A: For flexo printing, slitting, die-cutting machine, only need one person for each.
Q: What should we charge for your engineer?
A: You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 100USD one day per person.
SHOULD ANY FURTHER INFORMATION BE REQUIRED, PLEASE FEEL FREE TO CONTACT WITH US
