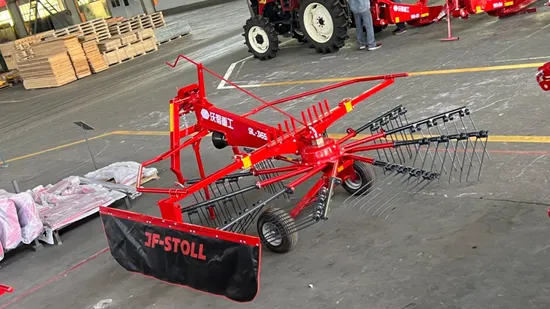

Our rake machine is engineered for efficiency, durability, and ease of use, making it an essential tool for modern agriculture. With its robust construction and advanced technology, the FMWORLD Rake Machine ensures optimal performance in all types of terrain. Its high-capacity raking system provides superior collection of hay, straw, and grass, significantly reducing labor time and increasing productivity.Our rake machine is engineered for efficiency, durability, and ease of use, making it an essential tool for modern agriculture. With its robust construction and advanced technology, the FMWORLD Rake Machine ensures optimal performance in all types of terrain. Its high-capacity raking system provides superior collection of hay, straw, and grass, significantly reducing labor time and increasing productivity.
| model | 9L285 rake | 9L315 rake | 9L365 rake | 9L655ASL rake | 9L655DS rake |
| Drive mode | Tractor pulling/PTO output/540r/min | Tractor pulling/PTO output/540r/min | Tractor pulling/PTO output/540r/min | Tractor pulling/PTO output/540r/min | Tractor pulling/PTO output/540r/min |
| Suspension type | Rear | Rear | Rear | Rear | Rear |
| Installation type | Three point opening and closing | Three point opening and closing | Three point opening and closing | Three point opening and closing | Three point opening and closing |
| Minimum traction force (KW) | ≥20KW(≥27.2hp) | ≥20KW(≥27.2hp) | ≥20KW(≥27.2hp) | ≥44KW(≥60hp) | ≥44KW(≥60hp) |
| Working range(mm) | 2800 | 3100 | 3600 | 6550 | 6550 |
| Working speed (km/h) | 5-20 | 5-20 | 5-20 | 6-12 | 6-12 |
| Working dimensions (mm) | 3100*3100*1600 | 3300*3200*1700 | 3300*3700*1800 | 5100*6500*1250 | 5100*6500*1250 |
| Transportation dimensions (mm) | 3100*1600*1600 | 3300*1600*1700 | 3300*1650*1800 | 3500*2900*3600(After folding) | 3500*2900*3600(After folding) |
| Machine weight (KG) | 325 | 345 | 405 | 1220 | 915 |
| Turning diameter (mm) | 2800 | 2800 | 2920 | 2900 | 2900 |
| Number of turntables (only) | 1 | 1 | 1 | 2 | 2 |
| Quantity of gear racks per turntable (only) | 8(Removable) | 9(Removable) | 10(Removable) | 10(Removable) | 10(Removable) |
| Tire specifications | 16*6.50-8 | 16*6.50-8 | 16*6.50-8 | 16/6.5-8 | 16/6.5-8 |
| center height adjustment | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Grass curtain | Curtain | Curtain | Curtain | Curtain | Curtain |
