Four Column Vulcanizing Press

Product Description

Product Description This machine is a special equipment for pressing rubber products and thermosetting plastic products.
The main structure of the column plate vulcanizing machine is to connect the upper beam and the lower seat with the hydraulic cylinder with the column and nut to form an independent part of the vulcanizing machine.
A movable platform is placed on the top of the plunger and connected with the platform by screws.
The upper and lower hot plates are connected with the moving platform and the upper beam respectively to form the whole column type flat plate vulcanizing machine.

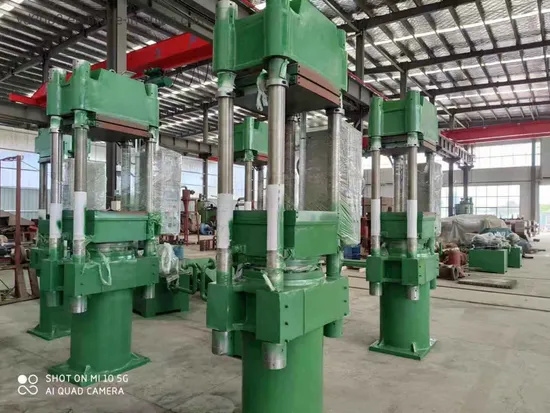

Detailed Photos
Product Parameters

type	XLB-DQ
total pressure	0.25mn
plate size	300*300mm
plate clearance	125mm
working layer number	2
piston stroke	250mm
plate pressure	2.1mpa
motor power	2.2kwew
weight	1050kg

Packaging & Shipping
Company Profile Qingdao EENOR Science&Technology Co., Ltd. is one of the biggest manufacturers and exporters of rubber machinery in Northern China. Our company was established in October, 1996, with over 10 years' experience in producing rubber machinery. We have more than 530 employees. We have a floor area of 58 thousand square meters, a building area of 34 thousand square meters and the fixed assets of 62.8 million Yuan. Our company mainly provides various rubber product equipment, such as flat vulcanizing machines, banbury mixers, rubber fining mixers, rubber cutting machines, extruders and waste tyre recycling machines.Our leading parts have won the title of "High Quality Products" of municipal, provincial and national grades. Our products passed ISO9001 International Quality Standard System Certification in 2001, endowing our company with independent import right. Our company has been designated as "National Second-grade Metering Unit". Our company has been awarded the titles of "Qingdao High-tech Enterprise" and "Provincial Contract and Credit Keeping Enterprise". Our company is located by the side of No. 204 National Highway, with 20km away from Qianwan Harbor in the east, more than 10km away from Shugang Highway in the south, 30km away from Jiaozhou Railway in the north and 2km away from Tongsan Highway in the west, enjoying a superior geographic position.With topping techniques, services and quality, our chairman of the board Mr. Pang Kimsun and all of our staff sincerely welcome clients from both at home and abroad to visit us for communication and guidance.


FAQ
1.Q:Are you a factory or trading company?
A:We are factory,passed CE,BV certification.
2.Q:Where is your factory?How can i visit ?
A:Our factory located in qingdao city.You can fly to qingdao liuting airport,then we can pick you up to our facotry to visit.Warm welcome visit us.
3.Q:How does your factory control the quality of machines and after sales service?
A:Our machines passed CE,BV,ISO,SGS certification,pls confirm the quality.All our machines have 1 year guarantee, will provide lifetime maintenance.

---
