Product Description
Product Description

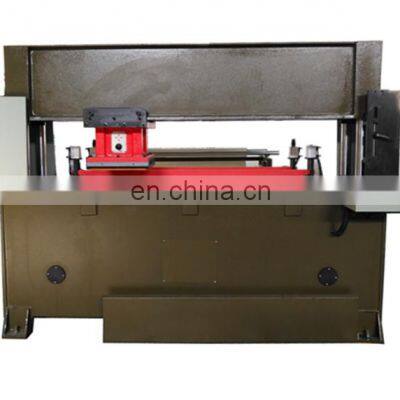

Hydraulic Travelling Head Cutting Machine The working principle of the hydraulic cutting machine is down press to the mould,to cut material by dies / moulds.1.travel head cutting machine pressure:25Tons-50Tons,Cut material by dies / moulds.2.Hydraulic,manual simple operated,material precision 0.01mm,no burned.3.Two Cylinders,Four Column,Plane cutting press machine4.Usually cut for shoe uppers,insoles,bags,purse,soft toys,abrasive tools,fabric ect.5.Can make big cutting area:610*1600mm or as required. Mainly used for die cutting leather and leather products,plastic,rubber,sponge,foam,EVA,PVC,cardboard, paper products,fabric,home textiles,packaging materials,non woven,carpet,car cushion,felt,synthetic materials, and other non-metallic materials in various industries;Extremely suitable for cutting multiple layers of material at one time. 1. Technical Parameters travel head cutting machine Model.No~ Cutting Force Dimension(L*W*H) Cutting AreaCutting Plate Main Motor Power Stroke Control Range Net WeightDP-C25T 25 Tons 2330*900*1900mm 500*1600mm500*500mm2.2kw40-160mm 1900kg DP-C30T 30 Tons 2330*900*1900mm 610*1600mm610*610mm4kw40-160mm 2300kgDP-C40T 40 Tons 2330*900*1900mm 610*1600mm610*610mm4kw40-160mm 2800kg HG-C50T 50 Tons 2330*900*1900mm 610*1600mm610*610mm5.5kw40-160mm 3500kg2. Features and Advantages travel head cutting machine Features and Advantages1.Movable trolley with powerful dynamic braking assuring a quick stop without gear motor without gear motor.2.Pushing double buttons with two hands to ensure operators safety.3.Hydraulic auto balance system,low energy consumptions.4.High reliability,no primary,maintenance required.
>>
