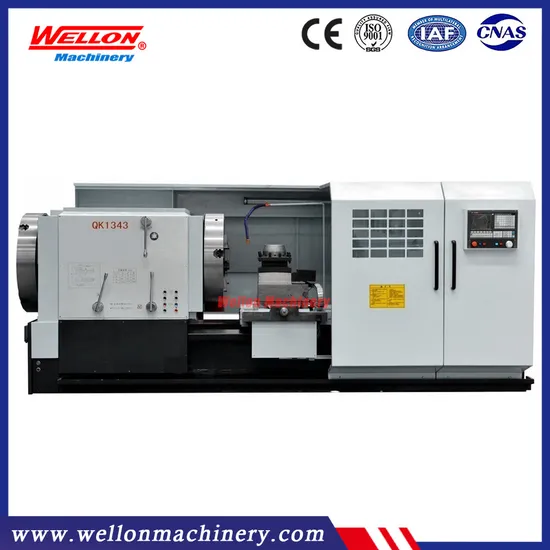

Heavy Duty CNC Oil Country Lathe Machine/CNC Pipe Threading Turning Lathe Machine QK1343

Product Description

Product Description
Detailed Photos
Product Parameters

CNC Pipe Threading Lathe Machine tool is mainly designed to process all kinds of internal and external pipe threads
including metric,inch,module,DP and taper threads,as well as having all the common functions of normal CNC lathe
such as processing the inner bore and end face of shafts and disks.
This series lathe machine is widely used in industries including petroleum exploiting,coal and minerals mining,chemical
piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,
thread coupling and so on.

Big spindle bore and double chuck allows clamp and process big diameter pipes;
Integral machine bed adopts high strength iron to realize high rigidity and precision;
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;
Carriage and guide way contact surface pasted with Turcite B to maintain long-term accuracy.
Technical parameters

Item		Unit	QK1343
Max dia.swing over bed		mm	1000
Max dia.swing over cross slide		mm	610
Max.length of work-piece		mm	1500
Width of bed		mm	755
Spindle bore		mm	440
Power of spindle motor		Kw	22
Mode of spindle speed			Two gears, smooth adjustment
Range of spindle speed		r/min	Low:23-120 High:65-258
Max.traverse of X/Z		mm	X:550 Z:1250
X/Z rapid traverse		mm/min	4000
X-axis motor	Speed	r/min	1500
	Torgue	N.m	18
	Power	Kw	2.8
	Speed	r/min	1500
Z-axis motor	Torgue	N.m	22
	Power	Kw	3.5
Tailstock quill	Diameter	mm	140
	Travel	mm	300
	Taper		Morse NO.6
Electric tool-post	Model		SLD170A04N
	No.of tool stations		Vertical four-station
	Dimension	mm	40x40
	Turret indexing time	S	5.6
Chuck			K66-1000 four jaw electric chuck
Positioning accuracy		mm	0.020
Repositioning accuracy		mm	0.01
Overall dimensions(L*W*H)		mm	5000×2100×2100
Machine weight		T	13

Standard accessories:
Fanuc 0i TF controller
4 position NC turret
Coolant system
Lubricating system
Work lamp
Semi closed cover
Manual tail stock
Double chucks
Rear support brackets
Pad iron
User manual
Operate tools
Optional accessories:
CNC system Siemens, GSK etc
Servo turret, Hydraulic turret, 6 position turret
Chip conveyor
Full closed cover
Hydraulic tail stock
Steady rest
Follow rest
Grinding attachment
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining
Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
