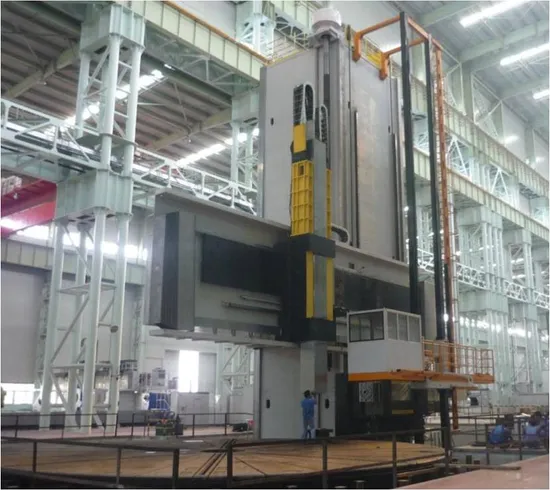

Ckx53160 Single Column Movable Vertical Milling and Turning Machine/Customerized Machine

Product Description

Product Description
APPLICATION
The machine is widely applied for processing large components of industries such as hydropower, nuclear power, ship- buildi ng, etc. with advantages like heavy loading capacity, high work accuracy, and easy operation.
For milling and turning machine, with certain attachment head adopted, it can carry out milling, boring, drilling, tapping, counter boring, etc.
The main performance characteristics:
Table adopts high accuracy double row roller bearing in radial for centering, in axial pump per pocket hydrostatic guide way of constant flow s adopted for supporting. Main drive adopts wide field magnet DC motor; 2-step mechanic gearbox speed change. Milling and turning table can adopt double AC spindle motor drive, can realize high precision electric gap elimination. Toolhead moves on crossrail, load relief beam is adopted to reduce the bending of crossrail guide way and improve travel accuracy. Crossrail elevation adopts hydrostatic load relief screw pair transmission. Toolhead ram travel adopts ballscrew pair transmission, guide way adopts pump per pocket closed type hydrostatic guide way of constant flow. Milling spindle is housed in toolhead; AC spindle motor drive; 2-shift gearbox speed change. X/Z can adopt optical scale for full closed loop inspection. In table center of turning machine adopts encoder for constant speed cutting and thread turning. In table center of milling and turning machine adopts high precision radial grating for full closed loop inspection. Product Parameters

Item	Unit	Model
		CKX53125	CKX53150	CKX53160	CKX53200	CKX53250	CKX53280
Max turning job diameter	mm	Φ12500	Φ15000	Φ16000	Φ20000	Φ25000	Φ28000
Max turning job height	mm	5000	6300	6300	6500	12500	12500
Table diameter	mm	Φ7200	Φ7200	Φ8000	Φ10000	Φ12500	Φ12500
Max table loading capacity	t	250	250	400	500	800	800
Table turning highest speed	r/min	15.5	15.5	15.5	10	10	10
Table max torque	kN.m	530	530	630	800	1000	1000
Max ram travel	mm	2500	3150	3150	4000	5000	5000
Turning main motor power	kW	143	143	143	166	220	220

Detailed Photos
Workshop
Package
Installation and commissioning

---
