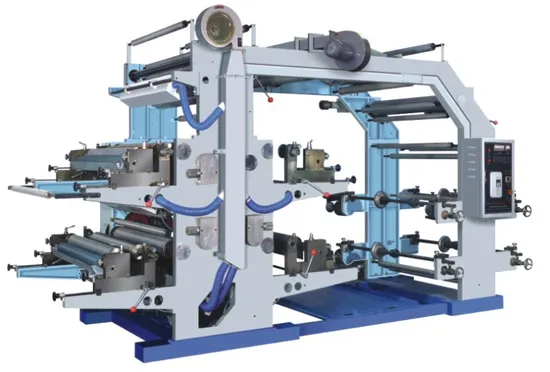

Fully Automatic Yt-600-800-1000 Flexographic Printing Machine

Product Description

1) Easy operation, flexible starting, accurate color-register
2) Equipped with meter counter, which make it possable to stop the machine automatically at the set meters of film or when the material is cut off
3) Pneumatic cylinder to lift and lower printing plate cylinder and it will stir the printing ink automatically after lifting
4) The printing ink is spreaded by the anilox cylinder with even ink color
5) Reliable drying system
6) 360 angles continuous and adjustable longitudinal register device
7) The inverter to control motor adapts to different printing speed
Application:
Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, Aluminum foil, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, pharmaceutical industrial and some other materials,
Printing machine unite
1. Duty heavy cast iron machine frame
1. Obverse and reverse side printing changing function.
2. Using multi-hole board dryers between each printing unit and multi-hole board type final drying.
3. All the anilox rollers are 220-250 Ipi
4. The main motor is controlled by inverter
5. Suitable for PET, PVC Label, BOPP, CPP, LDPE, HDPE, PP and Others
6. Printing cylinder one size
Main technical parameters:
1. Printing color: 4colors
2. Printing width: 900mm
3. Max. Diameter of printing roll: 1000mm
4. Max. Printing length: 1200mm
5. Up-down plate system: Manual
6. Printing speed: 5-60m/min
7. Chromatically precision: Vertical ± 0.25mm
Landscape orientation ± 0.25mm
8. Winder diameter: Max. φ 600 mm
9. Unwinder diameter: Max. φ 600 mm
10. Winding and unwinding rubber diameter: φ 76 mm (inner)
11. Winding and unwinding clamp: Air shaft
14. Dry method: Electric heat
12. Heating one set
13. Air dry blower: 2pics
14. Power of main motor: 2.2 kw ( ratio of speed-down is 1: 5)inverter motor control
15. Induction Machine: 0.75KW, 1440r/min, 50Hz
16. Printing cylinder: As client requirement, we supply one size (less than 30Cm, 4pics )
17. Printing Possibility: 2+2, 4+0, 3+1
18. Traction roller made by stainless steel
19. Overall dimension: 3.9m× 3.4m× 2.28m (L× W× H)
20. Weight: 2200 KG
21. Total power: Approx 18kw

Type	YT-600	TY-800	YT-1000
Max.Width of Printing	550mm	750mm	950mm
Max.Printing Length	914mm	914mm	914mm
Max.Diameter of Printing Length	Φ450mm	Φ450mm	Φ450mm
Printing Speed	5-50m/min	5-50m/min	5-50m/min
Printing Color Number	4(6)	4(6)	4(6)
Format Mater Thickness	0.02-0.06mm	0.02-0.06mm	0.02-0.06mm
Total Power	19kw	19kw	19kw
Machine Weight	3.7T	4T	4.3T
Overall Dimensions(L×W×H)mm	3850×1850×2250mm	3850×2050×2350mm	3850×2250×2350mm

---
