FTTH Self-Supporting Figure 8 Drop Fiber Optic Cable Gjyxch, 1/2/4core GJYXFCH

Product Description

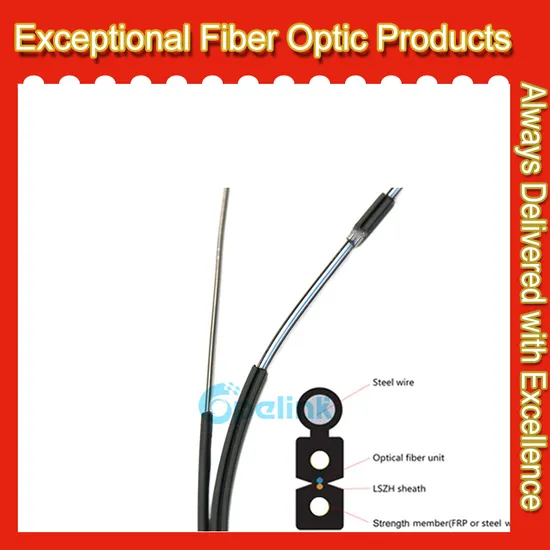

1/2/4Core Singlemode G657A1 G657A2,Metal Strength Member,FTTH Self-supporting Figure 8 stranded steel type Drop fiber optic Cable GJYXCH/GJYXFCH
Description:
Drop Fiber optic cables for telecommunication(Bow-type),suitable for optical fiber to the user (FTTH) network ,users to introduce the section of the cable, but also apply to the Office (FTTO) and optical fiber to the building (FTTB) ,and other optical fiber access network users to introduce the section of the optical cable.
FTTH drop cables are good to use for fiber to the home last mile solution, we provide FTTH drop cable with different counts from 1, 2, 4, to 12. This cable adopts the popular design in the industry, its structure and performance is optimized for FTTH applications.
The drop FTTH cables are with flame retardant jacket and with supporting wire, there are strengthen members inside the cables for supporting the whole cables, the whole cable meet the RoHS standards and contains no harmful components, in general, it is a highly recommended FTTH drop cables for use in the fiber to the home projects, saving time and cost.
Feartures: Good mechanical and environmental characteristics;
The mechanical characteristics meets the requirements of relevants standards;
Soft, flexible, easy to splice, and with big capacity data transmission;
Meet various requirements of market and clients.
Application:
Used as access building cable.
Used in horizontal and vertical cabling , especially used for FTTH.
Indoor cabling under carpet and along corner.

Technical Parameters:

Fiber Count	External diameter of optical cable (mm)	Weight of optical cable (kg/km)	Minimum bending radius (mm)		Allowable minimum crush resistance (N/100mm)		Allowable minimum drawing force of optical cable (N)
		(kg/km)	Static	Dynamic	Short term	Long term	Short term	Long term
1	(2.0±0.1)x(5.4±0.1)	20	20	40	2200	1000	600	300
2	(2.0±0.1)X(5.4±0.1)	20	20	40	2200	1000	600	300
4	(2.0±0.1)X(6.4±0.1)	20	20	40	2200	1000	600	300

Order Information:

Fiber Core	Fiber Type	Count	Cable OD	reinforcer	Fiber Jacket	Jacked Color
1=G652D 2=G657A1 3=G657A2 4=50/125 5=62.5/125 6=OM3 7=OM4 X=other	S=simplex Z=zipcord Duplex Y=Round Duplex F=Flat Duplex B=Breakout D=Distribution R=Ribbon A=Armored W=Waterproof X=other	001=1 core 002=2 cores 003=3 cores 024=24 cores XXX=other	01= 0.9mm 02=2.0mm 03=3.0mm 04=2.9*6.0mm 05=1.9*3.1mm 06=4.2*7.6mm 07=9.0mm 08=11.2mm 09=4.0*7.0mm XX=other	1=Kevlar 2=FRP 3=Armoured steel tape 4=Steel wire 5= Armoured steel tape & Steel wire	PR=PVC-OFNR PP=PVC-OFNP LH=LSZH PE=PE PU=TPU LN=Nylon HT=Hytrel xx=other	01=Blue 02=Orange 03=Green 04=Brown 05=Slate , 06=White 07=Red 08=Black 09=Yellow 10=Violet 11=Rose 12=Aqua 13=12 Color XX=other

----------------------------------------------------FAQ---------------------------------------------------
Q1. Can I have a sample order for this product? What' MOQ of it?
A: Yes welcome send sample order for test. MOQ is 1 piece.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.

Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you.

Q6: Do you offer guarantee for the products? A: Yes, we offer 1-2 years warranty according to different products.
Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.

---
