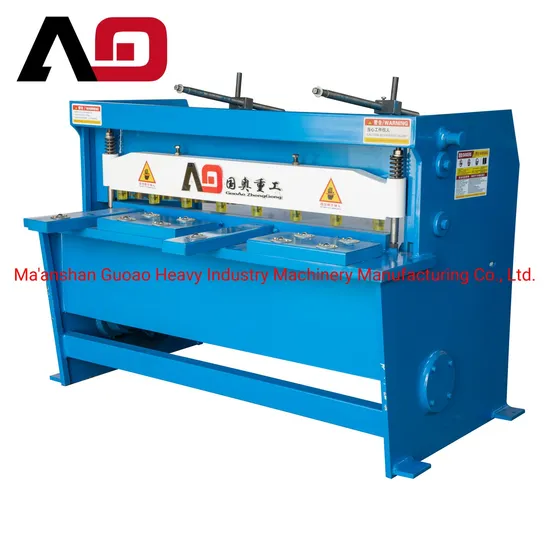

HVAC Electric Plate Shearing Machine for Steel Sheet with 3mm Max Cutting Thickness

Product Description

Product Description: The machine is overall steel-welded and gate-type with chain drive. The motor has its own brake, which means no power consuming when not shearing. It's suitable for processing sheet metal less than 3mm in thickness. Main Technical Parameters:

Model	Max sheet thickness (mm)	Max sheet width (mm)	Number of stroke (/min)	Power (kw)	Dimension L*W*H (mm)
Q11-3*1600	3	1600	30	4.5	2300*900*1250
Q11-3*2000	3	2000	30	5.5	2700*900*1250
Q11-2*2500	2	2500	30	5.5	3200*900*1250

Structure
1. Swaging beam
2. Swaging gasket
3. Dragging plate
4.Shearinf blade
5. electricity box
6. back gauge
7. shearing blade
8. Blade adjust screw
9. motor
10. Back gauge
11. Guide rail
12. Reducer
Workshop
Packing & Loading

---
