Advanced Automatic Start-Stop Rewinding Machine for Flexible Use

Product Description

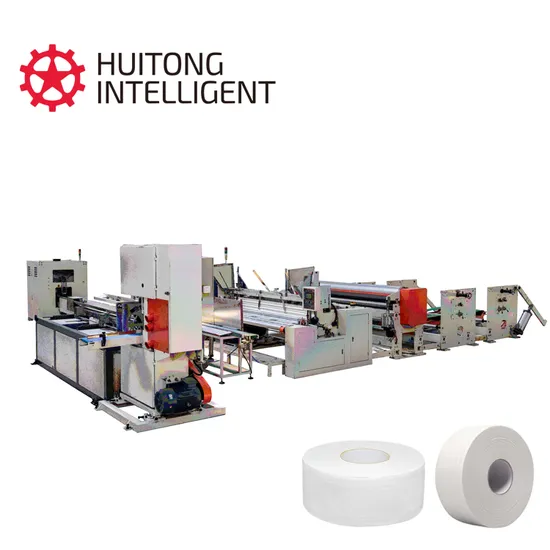

Automatic Maxi roll production line
Product Description Equipment performance description:
High speed automatic rewinder adopts PLC programming control, rotary large screen color man-machine interface operation, Chinese and English one-click switching independent language environment operation, mechatronic and optical integration control and other international advanced technologies to achieve a high degree of automation and humanization.

Ready to embark on a lucrative venture in toilet paper rollsproduction? Discover the essential machinery you need to succeed!
1. One Set of Highly Efficient Facial Tissue Folding Machine
2. One Set of Precision Facial Tissue Cutting Machine
3. One Set of Advanced Facial Tissue Packing Machine 4. One Set of Bundling Packing Machine for Ultimate Efficiency
Explore a variety of machine types, whether full auto or semi auto. We warmly invite you to consult with us and explore innovative production solutions tailored to your market's popular products.
Sophisticated Functions The maximum operational speed of the Automatic Maxi roll production line , achieving an impressive rate of 300-500m/min ♦ Intuitive operation and minimal maintenance, maximizing space efficiency with only one operator needed to transfer tissue logs post-operation ♦ Leverage our automatic cutting machine to dramatically boost production efficiency and ensure pristine tissues, free from human contamination ♦ Automatic shutdown feature when paper breaks, conserving resources by preventing undue waste Remarkable Features: 1. The side plate of the machine head is fastened with steel plate screws to ensure high-speed and stable operation;
2, the dynamic balance speed of the winding roller is 500 meters/min;
3, design pipe dropping device;
4, supporting base paper feed rack, suitable for 2.2 meters diameter, weight less than 2 tons of base paper;
5, each group of rear frame adopts three belts to transport the base paper, conveyor belt width 200MM; 6. State-of-the-art operation system featuring imported PLC and frequency conversion speed regulation for superior control.
Detailed Photos

Product Parameters
Key Technical Parameters:
1. Cutting-edge Tissues Fold Machine

Machine model	HT-XPZ01
Finished products unfolded size	180*210mm±2mm
Folding products size	90*(120-210)±2mm
Width of Jumbo rol	2950-3950mm
Finash roll diameter	≤1500mm
Raw material core diameter	2000-3000mm
Out put (8 hours)	8000~10000Kg
Embossing unit	Steel to paper or steel to steel, Steel to steel edge embossing ,independent pneumatic regulation
Power	7.5KW Main motor
	3.0KW(2set) Unwind
Vacuum suction unit	47KW Fan
Pneumatic system	3 HP air compressor ,mini pressure 5kg/cm2PA
Driving system	Timing belt
Dimension	8700X3500X7000mm
Weight	15ton

2. Advanced Toilet paper Auto Log Separator integrated into the machine

No.	Item	Technical parameter
1	Sub-stack function	Adopts 4sets servo controlling, can achieve automatic separating
2	Sub-stack structure	Wall panel frame type
3	Sub-stack slide	All sub-stack slides adopt imported linear bearings, and adopt double-shaft structure to ensure the stability of each sub-stack part
4	Main sub-stack parts	All parts are aluminum alloy and processed by CNC machining center to ensure the accuracy of sub-stacking
5	Paper output baffle	All are processed by imported aluminum alloy to ensure the result of paper output
6	Sub-stack pneumatic part	Adopts AIRTAC pneumatic parts to ensure the accuracy of sub-stacking
7	Paper pieces tracking	Using high-precision encoder
8	Sub-stacking draws adjusting	Set on touch screen, can 100% accuratly adjust the draws(set based on even draws)
9	Set draws range	2layers, 100-200draws; three layers, 60-150draws
10	Sub-stacking times	Max sub-stacking 10times/min
11	Controlling method	when machine common stop, it must finish the whole stack then can stop machine
13	Paper support part	Stainless steel is used to ensure the strength and rigidity of supporting semi-finished products at high speed
14	Sub-stacking servo motor power	15KW
15	Compressed air pressure	≥0.6MPa
16	Gas consumption	1000L/shift
17	Air pressure	24V
