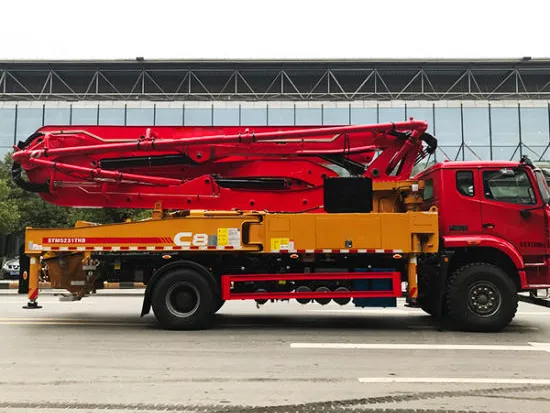

High Quality 38~48m Syg5310thb 430c-10 Truck-Mounted Pump with Good Price

Product Description

Product Description

Energy-saving: Pump efficiency is increased up to 25% while fuel consumption is decreased by up to 10%.
Highly Wear Resistant Parts: The highly wear resistant parts improve efficiency and reduce down time.
Self-diagnosis Technology: Continually monitors more than 200 aspects of the system during operation. Faults are displayed on the monitor. Review of the detected faults can reduce troubleshooting time by 70%. Safe: This truck mounted concrete pump exemplifies precise, rigorous manufacturing philosophy and uncompromising focus on safety.
Product Parameters

ITEM	UNIT	SYG5310THB 430C-10
Outline dimension	mm	11700*2550*4000mm
Oerall weight	kg	31500
Vertical reach	m	42.5
Horizontal reach	m	37.7
Reach depth	m	27
Unfolded reach	m	11
Rotation	°	±360
Front outrigger spread L-R	mm	8430
Rear outrigger spread L-R	mm	7815
Output	m³/h	160
Pressure	MPa	7
Max.speed	km/h	90
Delivery cylinder diameter	mm	230
Stroke length	mm	1900
