High-Quality Laboratory Vulcanizer for Small Batch Production

Product Description

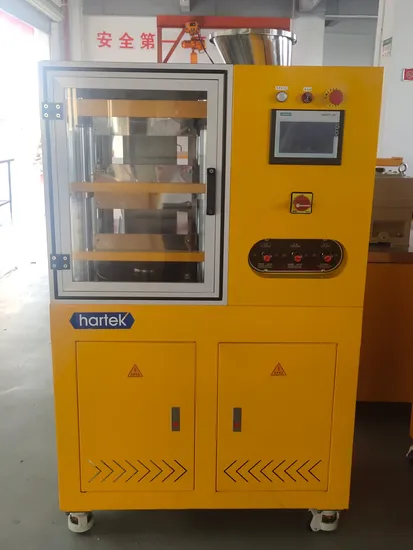

About Lab Precise Hydraulic Platen Press
*Applicable for thermoforming of thermoplastic materials and thermosetting materials' hot press/vulcanization forming.
*Hydraulic loading, pressure 20, 30 tons. Upper heating, lower cooling.
*Equipped with an exhaust function.
*Siemens TFT touchscreen and Siemens PLC centralized control system, highly intelligent and easy to operate.
*Mechanical and electrical dual safety protection, meeting CE safety standards.
*Formula storage.
Technical Parameters

Model	HTYP-20	HTYP-30
Pressure	20t	30t
Max. Temp.	300ºC	300ºC
Temp. Accuracy	±2ºC	±2ºC
Heating Method	Electric Heating	Electric Heating
Press Plate Dimensions	300×300×60	300×300×60
Opening Distance	0~150mm	0~150mm
Exhaust Times	0~10	0~10
Pressure Sensor	0~20Mpa	0~20Mpa
Dimension	950×500×1470mm	950×500×1470mm

FAQ:
1.Where is our factory?
Hartek: Our factory is located in guangzhou city, guangdong province, China, about one hour by car from guangzhou baiyun airport . All our clients from home or abroad, are warmly welcome to visit us!
2.Why choose us?
Hartek:(1)We have complete system of designing of our equipment.
(2)We can provide the perfect management solutions.
(3)We master the core techonology in this extruder industry.
3.What's the payment method?
Hartek: We accept by T/T ,Western Union,Paypal. 30% down payment should be paid after contract is valid, 70% balance should be paid before shipment.
4.Can we see the running machine in your factory?
Hartek: Yes.Before making your decision buying the equipment or not,you can bring some material here to test-run the equipment.
5.How long of the warranty time?
Hartek:We offer you high quality machines with 12 months guarantee.
6.What is your packaging?
Hartek: After doing the anti-rust treatment, wrap the plastic film around the machine and then fix the machine on the standared export wooden boxes.
7.How can we check the machines before delivery?
Hartek:We can provide online checking when testing the machine on site. We will take and prepare detailed testing videos for your checking before the delivery.

---
