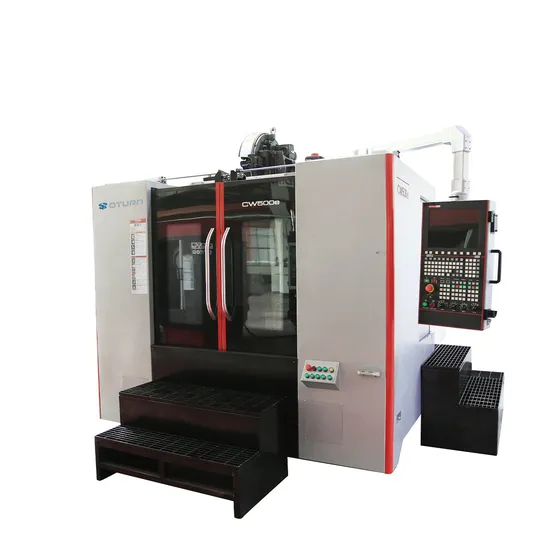

Swiss Type Oturncnc Cw500e Horizontal Milling Machining Center

Product Description

Product Description
The horizontal machining center CW500e has the characteristics of high rigidity, high precision and high efficiency machining. The column adopts a herringbone design with a large span, which can greatly enhance the bending and torsional strength of the column; the workbench adopts a reasonable slider span and is surface quenched, so that the force on the workbench is even and the hardness is improved; the bed adopts a trapezoidal cross-section, reducing The center of gravity improves the torsional strength; the whole machine uses finite element analysis to design each component to provide the best overall stability.
The three-axis rapid displacement is 48 M/min, the T-T tool change time is only 6S, the tool magazine is fully loaded for 24 hours, and there is no alarm for tool change . It is suitable for milling, drilling, expanding, boring, tapping and other processing procedures of various cavity parts. It is more suitable for small and medium-sized batches of multi-variety processing and production, and can also enter automatic lines for mass production.
Adopt the latest C80 PLus system, 15-inch super large LCD display, dynamic graphic display of tool trajectory, intelligent warning display, self-diagnosis and other functions to make the use and maintenance of the machine tool more convenient and fast; the high-speed bus communication method greatly improves the CNC system. With advanced data processing capability and control performance, the program storage capacity is increased to 4G, and the pre-reading capability is increased to 3000 lines/s, which facilitates the fast and efficient transmission and online processing of large-capacity programs.
Product Parameters

Item		Unit	CW500e
Travel	Travel of X/Y/Z axis	mm	1000×660×570
	Distance from spindle center to worktable	mm	-5-655
	Distance between the spindle end and worktable center	mm	130-700
Worktable	Worktable diameter	mm	500×500
	Worktable number	mm	1
	Max. load	kg	400
	Max workpiece size	mm	φ1000*600
	Distance from worktable to ground	mm	1130
	Minimum division	Degree	0.001
Feed of 3 axis	X/Y/Z axis fast move	m/min	48/48/48
	Cutting feed rate	mm/min	0-10000
Spindle	Spindle specification (installation diameter/transmission method)	mm	170 / Built-in
	Spindle taper	m/min	BT40
	Max. Spindle speed	mm	15000
	Spindle Motor Power (Continuous/S3 60%)	Kw	18.5/26
	Spindle Motor Torque (Continuous/S3 60%)	N.m	29.2/53.5
Tool magazine	Tool magazine capacity	/	24T
	Tools change time(T-T)	s	6
	Max. Tool diameter (full tool / adjacent tool)	mm	80/150
	Max. Tool length	mm	350
	Max. Tool weight	Kg	8
Guide	X-axis guide (size/number of slides)	/	35/2(roller)
	Y-axis guide (size/number of slides)	/	35/2(roller)
	Z-axis guide (size/number of slides)	/	35/2(roller)
Ball screw	X-axis screw	N	Φ40×16
	Y-axis screw	N	Φ40×16
	Z-axis screw	N	Φ40×16
Accuracy	Positioning accuracy	mm	±0.005/300
	Repeat positioning accuracy	mm	±0.003/300
Lubrication system	Lubrication unit capacity	L	2
	Oil separator type	/	Volumetric
Cutting fluid	Water tank capacity	L	240
	Cutting pump parameter	/	0.32Mpa×16L/min
Others	Air demand	Kg/cm2	≥6
	Air source flow	mm3/min	≥0.4
	Battery capacity	KVA	22.5
	Weight	T	6.5
	Machine size (Length x Width x Height)	mm	2653*2850*2972

Products Configurations
Company Profile
Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
2.lf need ClF Price, please kindly tell us the port of destination.

---
