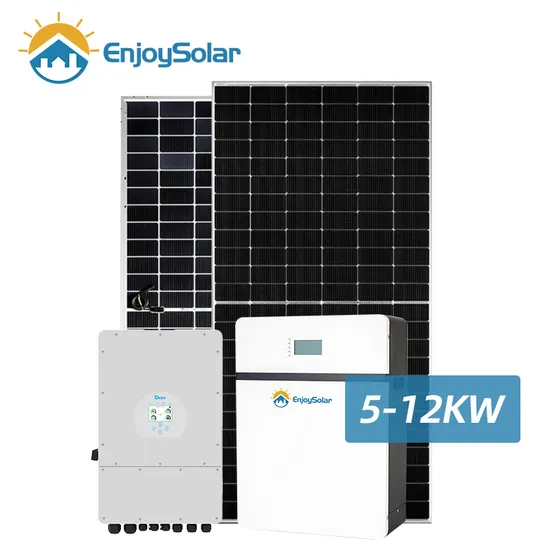

Enjoy 5kw 6kw 8kw 10kw off Grid High Efficiency Solar Home Solar Power System

Product Description

How It Works?
Solutions Design

Model	5KW	10KW	15KW	20KW
Mono Half Cell Solar Panel 570W	9PCS	18PCS	26PCS	36PCS
Hybrid Inverter	5KVA 1PC	10KVA 1PC	15KVA 1PC	20KVA 1PC
LiFePO4 Battery	10.24KWH (Optional)	14.336KWH (Optional)	20.48KWH (Optional)	37.99KWH (Optional)
DC Cable 1*4MM2	200 Meters	400 Meters	400 Meters	600 Meters
MC4 Connector	4 Pairs	6 Pairs	10 Pairs	15 Pairs
Mounting System	Customized Designed Roof/ Ground Mounting Kits
Solar Installation Tool	1 Set	1 Set	1 Set	1 Set

System Components
Mono Solar Panel
Model: ES570M-PH
Peak Power Watt: 570Wp
Open Circuit Voltage (Voc/V): 50.2V
Short Circuit Current (Isc./A): 14.34A
Voltage at Maximum Power (Vmp./V): 42.51V
Current at Maximum Power (Imp./A): 13.41A
Efficiency: 22.07%
Dimensions: 2278*1134*35mm
Weight: 28.6% kg
All-in-on hybrid solar inverter
Increases energy independence for homeowners and commercial users
Smart Monitoring & Remote Firmware Upgrade
Built-in Anti-feed-in Function
AFCI (Optional) & Rapid Shutdown Ready
Support for Time-of-use Optimization
Battery Storage Bank
Deep Cycle long lifespanHigh discharge performanceEasy installation and Maintenance-freeAGM/GEL/Lithium Ion Battery Type48V/High Voltage BatteryMore than 6000 times, up to 90% DODWide suitability of ambient temperature rangeDC Cable & Accessories
Cross Section: 4mm2, 6mm2 OptionalRated Voltage: 600VDC /1000VDC (TUV)Rated Current: 55A, 70AColors: Black For STD, Red Optional.Lifetime: ≤25 Years
Online Monitoring System
Open Station Supports one-click
Installation and registration Problem
Support one-click dispatch and navigation
Safe operation, traceable logs, etc.
Support full life-cycle data storage to ensure
data security and reliability
PV MOUNTING SYSTEM
MOUNTING RAIL & RAIL SPLICE KIT: AI6005 & SUS304 BOLT
MID&END CLAMPS: 30,35,40MM
Optional: Roof Mounting/Ground Mounting/Carport etc. Design diagram according to customer's installation area. Packaging & Shipping
