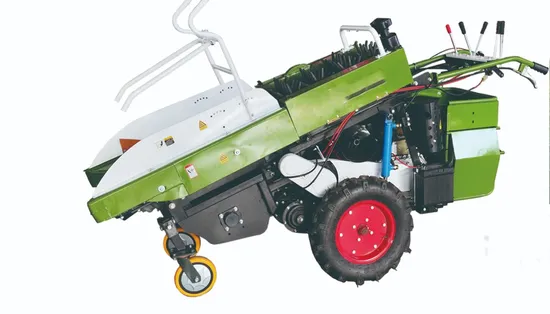

1100husked Corn Harvester, One Row Self-Drive Corn Harvesting Machine

Product Description

Product Description
Small maize harvesters are agricultural machinery specially designed for use in small-scale maize growing areas, and their main function is to carry out harvesting operations when the maize is ripe, including plucking, peeling and straw handling. These harvesters are usually small in size and flexible in operation, and are suitable for use in small plots and complex terrain.
The small corn harvester removes the corn cobs from the plant by means of an ear picking device, followed by removal of the corn husk by means of a peeling device, after which the cobs or peeled corn kernels are delivered to a collection box by means of a conveyor system. Meanwhile, the straw handling device chops or collects the corn stalks for subsequent processing. The whole process is highly automated, greatly improving the harvesting efficiency. Product Parameters

Name		1100Husked corn harvester
Mode		YMS-1A
Structure		Four wheel self-propelled
Engine model		1100F Diesel engine
(kw)Rated power		10.5
(r/min)Engine speed		3600
(mm)Dimension		2600×850×1400
Starting mode		Electrical start
(kg)Weight		536
Transmission mode		Triangle belt
Main clutch type		Ortlinghaus plate
Handle adjustment	Horizontal	Non-ajustable
	Vertical	Adjustable
Cutting row number		1
(m/s)Operating speed		>0.3
%Kernel integrity rate		90
Number of blades		12
Speed changing box		Double differential steering
Machine characteristics		Grain recyling ,no waste Tire hydraulic lifting,slope operation Husks clean Straw directly crushed and returned to the field Can hopper,can bagged
