Commercial Cocoa Bean Pulverizer Coffee Bean Grinder Coffee Powder Pulverizer Cocoa Grinding Machine

Product Description

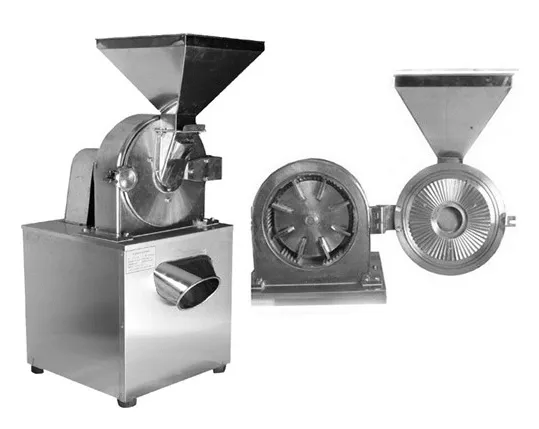

Pin Mill Product Description
A pin mill (pin mill grinding,micro pin mill,fine pin mill,pin mill grinding, pin mill Crush, pin mill pulverizer,pin grinding equipment) is a mill machine that comminutes materials by the action of pins that repeatedly move past each other. Much like a kitchen blender, it breaks up substances through repeated impact.
The mill is a type of vertical shaft impactor mill and consists of two rotating discs with pins embedded on one face.
The discs are arrayed parallel to each other so that the pins of one disk face those of the other. The substance to be homogenized is fed into the space between the disks and either one or both disks are rotated at high speeds.
Pin mills can be used on both dry substances and liquid suspensions.Pin mills are commonly use in the manufacture of
pharmaceuticals, as they can achieve particle sizes as low as a few micrometers.
The material is evenly fed into the grinding chamber by the feeding system, strongly impacted by the high-speed rotating disc.
At the same time, it is subjected to various comprehensive forces such as friction, shearing and collision between the static disc and the ring gear to grind material.
The moving disc and static disc can be combined in different structural forms according to nature of material to meet the grinding requirements of different materials.

Features
• Available D50:10-45μm.
• No sieve, smooth discharge, high capacity and low operation cost.
• High line speed, finer particle size.
• Compact structure and small occupation. easy to disassemble and clean
• Lower installation power, wide application, high cost-performance.
• Different installation combinations, applicable to different process requirements
• Grinding is in closed system, low dust and noise, clean and environmentally friendly production process.
• PLC control system, easy operation.
• Single or double drive, if upgraded to dual power, reaching 200m/s or more line speed, to obtain the maximum grinding force
• The motor can be connected with a belt to increase the speed and break through the problem of high-speed motors without the well-known motor brand.
• Can be used in series with multi-stage classifiers to produce products with multiple sizes at one time.
• Optional explosion-proof design, meet the ultra-fine grinding processing requirements of flammable and explosive oxide
materials
• High-temperature, low-temperature, normal-temperature, airtight cycle, Inert gas cycle designs are available, for different
grinding requirements of different materials.
Applications
Widely used in chemical, inorganic salt, medicine, food, pigments, dyes, pesticides, battery materials, minerals, refractory materials and other industries.
Product Parameters

Model	DPM160	DPM260	DPM400	DPM510
Max Power Of Motor (kw)	4	11	22	37
Dial Max Speed (rpm)	24000	16000	12000	9000
Number of Dial Rows	3	3	3	3
Crushing Particle Size D97 (um)	10-500	10-500	10-500	10-500

Related Products
Disc Mill Hammer Mill Universal Mill
Company Profile
Changzhou General Equipment Technology Co., Ltd. is located in LiYang city, a famous scenic and tourist city in JiangSu Province. It is a high-tech equipment manufacturing enterprise . The company is located in the local High-tech Machinery Industrial Park, with very convenient transportation.
The company covers an area of 70,000 square meters, plant area of 50,000 square meters, nearly 100 employees. The company has high-end processing equipment & testing equipment; It has D1 and D2 pressure vessel design qualifications and A2 pressure vessel manufacturing qualifications.Our main products are including Jet Mill Micronizer, Mixer, Granulator and Dryer, Chemical Equipment: Reactor, Heat Exchanger, Column, Tank and Environmental Protection Equipment, etc .
We provide technology research and development, process design, equipment manufacturing, installation and commissioning, project contracting and other comprehensive services. Our products are quite widely applied in the industry of petrochemical industry, Pharmaceutical , Agricultural Chemistry, New Energy, thermal power, steel smelting, Environmental Protection and other Service.Our customers are from the domestic and overseas markets, product quality and fantastic service are deeply praised by customers and partners.
We adhere to the concept of "Scientific Management, Advanced Technology, Quality Priority & Win-Win Cooperation", pursue the enterprise purpose of "Market by Quality, Win customers by Reputation, and seek development by Science & Technology", carry forward the enterprise culture, deepen the enterprise management, enhance the enterprise image, actively create new high-quality products, to provide customers with the superior quality.
Sincerely welcome all customers to visit our company for guidance and cooperation, let's make a better future together.
