High Quality Large Crushing Ratio Aggregate Stone Crusher Machine Price

Product Description

High Quality Large Crushing Ratio Aggregate Stone Crusher Machine Price

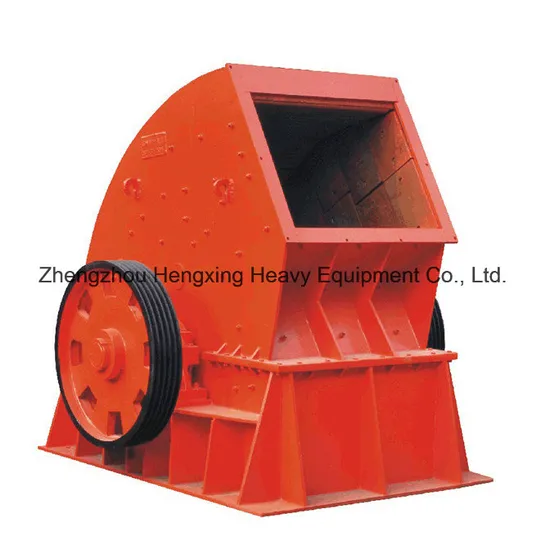

Heavy hammer crusher are applicable for various hard and fragile materials, such as limestone, coal, salt, gypsum, alum, brick and tile, etc. The crushing compressive strength of materials should not be in excess of 150Mpa. heavy hammer crusher is mainly used in industries such as cement, coal separation, electricity generation, building materials and compound fertilizer, etc. And heavy hammer crusher can crush materials with different sizes into equal particle, which favors the next procedure. The advantages of heavy hammer crusher is have reliable mechanical structure, high productivity and favorable applicability.
Hammer crusher woking Principle

Hammer crusher hammer back with a tray mounted on a horizontal axis, mainly by the base, disc, cover, shaft, pin, hammer, bearings, discharge grate bar joists, eccentric suspension axis, spiral and other components.
Raw material is fed into the mouth after being asked rpm high-speed hammer violently shaken and thrown to the ladder arrangement liner, more violently crushed, crushing majority reached the desired size of the finished product that is calculated from the following article gap unloading, yet reach the size of the material, leaving the operator to continue to be a hammer of impact, while the rust between the head and the count of being crushed and pulverized until the material block to fall through the calculation of the gap so far.
Single-directional rotating rotor hammer crusher multi-row structure. All casing wall lined with manganese steel liner. Crusher rotor is keyed to the disc number only on the spindle formed.
Heavy Hammer Crusher Techncial Parameters:

Types	Rotor Diameters*length mm	Mouth size W*L mm	Feeding size mm	Capacity t/h	Motor power KW	Theoretical weight t	Dimensions L*W*H mm
PCZ1308	1310*790	850*800	≤ 600	100-160	132	11.2	2818*2100*2390
PCZ1510	1500*950	1000*900	≤ 700	160-210	132*2	17.1	3260*3702*2750
PCZ1512	1500*160	1210*900	≤ 750	250-320	160*2	18.9	3260*2580*2750
PCZ1615	1650*1452	1500*1200	≤ 1000	360-420	200*2	28	3456*2915*3185
PCZ1620	1660*1900	2000*1300	≤ 1200	500-800	315*2	46	3500*3100*3200

Heavy hammer crusher Features
1.Available according to customer requirements, adjusting the size.
2. Working hammer, using new technology casting, with wear and impact resistance.
3. The overall design beautiful shape, compact structure, less wearing parts, easy maintenance, etc., is upgrading of products.
4. Compact structure, beautiful appearance, good wear resistance and easy maintenance.
5. hammer broken seal body structure to solve the crushing plant dust pollution and dust leakage problem.
