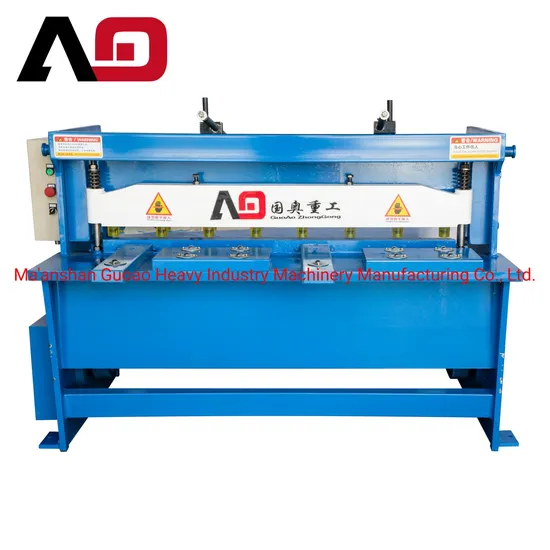

Mechanical Sheet Metal Shearing Cutter Machine/ Electric Plate Shear Cutting Machine

US$2,500.00 1 Set (MOQ)

Basic Info.

Model NO.
Q11-3*1600
Certification
CE, ISO 9001:2000
Condition
New
Warranty
1 Year
Transport Package
Standard Export Wooden Case
Specification
2300*900*1250 mm
Trademark
GUOAO
Origin
China
HS Code
8462392000
Production Capacity
3000 Sets/Year

Product Description

Product Description: The machine is overall steel-welded and gate-type with chain drive. The motor has its own brake, which means no power consuming when not shearing. It's suitable for processing sheet metal less than 3mm in thickness. Main Technical Parameters:
Model Max
sheet thickness
(mm)
 Max
sheet width
(mm)
 Number
of stroke
(/min)
 Power
(kw)
 Dimension
L*W*H
(mm)
Q11-3*1600 3 1600 30 4.5 2300*900*1250
Q11-3*2000 3 2000 30 5.5 2700*900*1250
Q11-2*2500 2 2500 30 5.5 3200*900*1250

Structure
1. Swaging beam
2. Swaging gasket
3. Dragging plate
4.Shearinf blade
5. electricity box
6. back gauge
7. shearing blade
8. Blade adjust screw
9. motor
10. Back gauge
11. Guide rail
12. Reducer
Workshop
Packing & Loading
