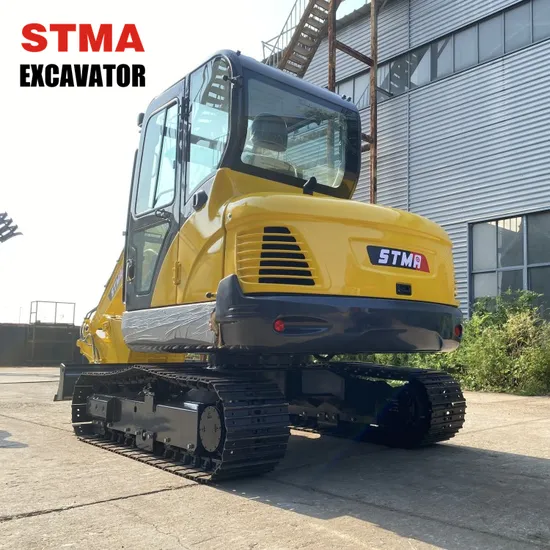

Stma 6.5ton Long Boom Excavator China Hydraulic Excavator Construction Digging Machine with Grapple Attachment

Product Description

STMA 6.5ton long boom excavator China hydraulic excavator construction digging machine with grapple attachment
Product Description
Excavator with grapple attachment
Product Parameters
Specifications of crawler excavator

Brand / Model	STMA / ST65	Service weight	5850 kg
Engine model	Yanmar 4TNV98L	Total track width	2000 / mm
Engine power	39KW/2100RPM	Total track length	2540 / mm
Cylinder number	4	Track plate width	400 / mm
Max mining height	5632 / mm	Total shipping height	2587 / mm
Max mining depth	3835 / mm	Total shipping width	1980 / mm
max excavation radius	6145 / mm	Total shipping length	5865 / mm
Max uninstallation height	3950 / mm	Boom length	3000 / mm
Max vertical mining depth	2680 / mm	Arm length	1600 / mm
wheel track	2060 / mm	Bucket capacity	0.02CBM
Back -end rotation radius	1670 / mm	Ground specific voltage	31 KPA
Minrotating radius	2640 / mm	traveling speed	4.5/2.1 KM/H
Min ground clearance	385 / mm	maximum drawbar pull	52 (kN)
Track gauge	1560 / mm	arm crowd force	32(kN)
Gradeability	30°	Bucket digging force	49(kN)

Features of mini excavator:
1. with stere reinforced shovel whose key parts increase the thickness of the steel plate adopts advanced manufacturing technology to improve the durability.
2. Large and robot welding arms, key areas of reinforcement.
3. The European and American version of the cab is 10cm wider than the conventional version, providing a wider view and reducing fatigue by 20%.
4. The imported control valve from South Korea, high performance rotary motor, and optimized hydraulic system make the rotation strong and powerful, and the operation more excellent.
5. Optimizi the parallel design of heat dissipation system to ensure the optimal operating temperature of the engine.
6. Optimize the intake system, strengthen the material of the filter element, achieve a filtration accuracy of 99.9%, and extend the repalcement cycle by 15%
7. Hydraulic system, high efficiency and energy saving, machine, diesel filter centralized maintenance, save time and worry.
