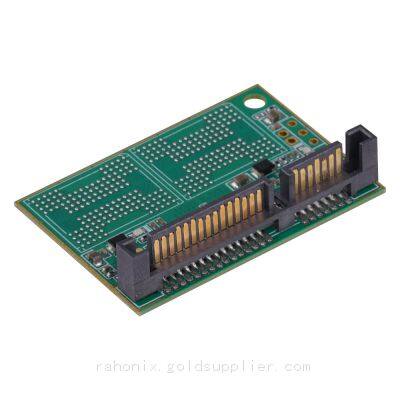

RSSDH Series SATA DOM (Disk-on-module)

Product Details

Product Description

Product Description
OverviewRSSDH-XXX is suitable in industrial applications and light operating systems for specific operations. The architectural nature of SATA disk module provides higher resistance to external environmental influences and better flexibility for motherboard space.
FeaturesInterface：SATA 7pin
Low-Density Parity-Check (LDPC) Code
Global Wear Leveling
Flash bad-block management
Flash Translation Layer: Page Mapping
Support S.M.A.R.T.
Support TRIM
Specifications

Product Model	RSSDH-XXX
Flash Type	SLC/MLC
Capacity	8GB-256GB
Sequential Read	Up to 300MB/s
Sequential Write	Up to 200MB/s
4K Random Read	15000 IOPS
4K Random Write	13300 IOPS
Operating Temperature	-20°C ~ 70°C, -40°C ~ 85°C
Storage Temperature	-55°C ~ +95°C
Humidity	5%-95% RH non-condensing
Shock	1500G/0.5ms
Vibration	80Hz~2000Hz/20G
Operating Voltage	DC 5V±5%
Power Consumption	1.5W
Dimensions	L39.5mm*W25mm*H9.3mm ±0.15mm
MTBF	2 million hours

ApplicationsEmbedded/Automation/AIOT/Medical

---
