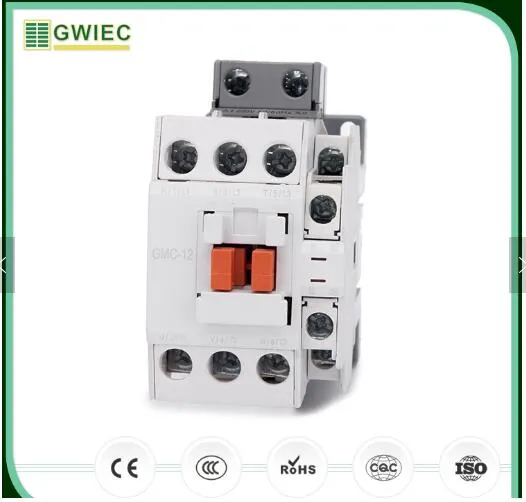

Mc-25b (GMC-22) Mec Magnetic AC Contactors 110VAC 50/60Hz 1A1b DIN Rail Contactores

Product Description

GWIEC China Factory Sales 18A 3P GMC CJX18 AC Types Brands Electrical Contactor Product Description Application:
GMC(CJX5) Series AC contactors are latest products in 1990's. The series of products for frequency of 50/60Hz, rated insulation voltage up to 690-1000V, rated operational current up to 9A-400A at rated operational voltage up to 380V under AC-3 GMC Series AC Contactors are mainly used for making breaking electric circuits at a long distance and for frequent starting stopping and reversing control of AC motors They products comply with IEC947,VDE0660,G814048


Specification:

Type				GDMC-9	GDMC-12	GDMC-18	GDMC-22
IEC-60947	AC1 duty			20A	20A	25A	32A
	AC3 duty		200-240V	2.5kW 11A	3.5kW 13A	4.5kW 18A	5.5kW 22A
			380-440V	4kW 9A	5.5kW 12A	7.5kW 18A	11kW 22A
			500-550V	4kW 7A	7.5kW 12A	7.5kW 13A	15kW 22A
			690V	4kW 5A	7.5kW 9A	7.5kW 9A	15kW 18A
UL	Continuous current (th)			20A	25A	30A	32A
	AC Motor	single phase	115V	0.5HP	0.5HP	1HP	2HP
			230V	1HP	2HP	3HP	3HP
		Three phase	200V	2HP	3HP	5HP	7HP
			230V	2HP	3HP	5HP	7.5HP
			460V	5HP	7.5HP	10HP	10HP
			575V	7.5HP	10HP	15HP	15HP
Aux. contact	Side mounting			AU-1
	Top mounting			AU-2, AU-4
Panel installation				Rail & screw
External dimension (mm) (WxHxD)				44 x 80 x 86.8
Type				GDMC-32	GDMC-40	GDMC-50	GDMC-65
IEC-60947	AC1 duty			50A	60A	80A	100A
	AC3 duty		200-240V	7.5kW 32A	11kW 40A	15kW 55A	18.5kW 65A
			380-440V	15kW 32A	18.5kW 40A	22kW 50A	30kW 65A
			500-550V	18.5kW 28A	22kW 32A	30kW 43A	37kW 60A
			690V	18.5kW 21A	22kW 25A	30kW 33A	37kW 47A
UL	Continuous current (th)			45A	50A	70A	80A
	AC Motor	single phase	115V	2HP	3HP	3HP	5HP
			230V	5HP	5HP	7.5HP	10HP
		Three phase	200V	7.5HP	10HP	10HP	15HP
			230V	10HP	10HP	15HP	20HP
			460V	20HP	25HP	30HP	40HP
			575V	20HP	25HP	30HP	40HP
Aux. contact	Side mounting			AU-1
	Top mounting			AU-2, AU-4
Panel installation				Rail & screw
External dimension (mm) (WxHxD)				68 x 82 x 94.6		94 x 123.5 x 117.4
Type				GDMC-75	GDMC-85	GDMC-100	GDMC-125
IEC-60947	AC1 duty			110A	135A	150A	150A
	AC3 duty		200-240V	22kW 75A	25kW 85A	30kW 105A	37kW 125A
			380-440V	37kW 75A	45kW 85A	55kW 105A	60kW 120A
			500-550V	45kW 64A	45kW 75A	55kW 85A	60kW 90A
			690V	45kW 47A	45kW 52A	55kW 65A	60kW 70A
UL	Continuous current (th)			90A	100A	160A	160A
	AC Motor	single phase	115V	5HP	7.5HP	7.5HP	10HP
			230V	15HP	15HP	15HP	20HP
		Three phase	200V	20HP	25HP	30HP	40HP
			230V	25HP	30HP	30HP	40HP
			460V	50HP	50HP	60HP	75HP
			575V	50HP	50HP	60HP	75HP
Aux. contact	Side mounting			AU-1		AU-100
	Top mounting			AU-2, AU-4		-
Panel installation				Rail & screw		Screw
External dimension (mm) (WxHxD)				94 x 123.5 x 117.4		100 x 157.4 x 146.5

---
