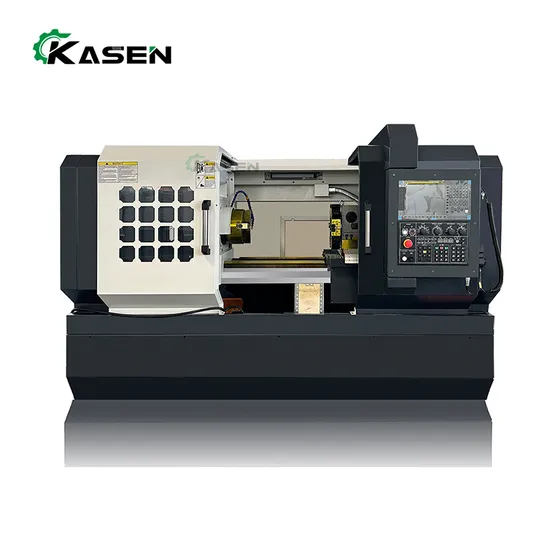

GSK New and Popular Products with High Quality Ck6150 CNC Lathe Machine

Product Description

GSK New And Popular Products With High Quality CK6150 CNC Lathe Machine
Product Description
*Spindle with Japan NSK bearing and high speed
* Best igidity and stability Lathe body and guide
* the guide is treated by super audio quenching with high hardness,
* Feed of X.Z axis are driven by all screw with servo-motor
* Electronic hand wheel equipped easy operation.
* Can be free to choose CNC system
* Three gears and stepless speed change with lower noise and high standard machining accuracy;
* Three kinds of spindle bore can be choose (52/82/105mm) while the diameter of chuck is φ250mm and 325mm
Standard Configuration:400mm bed width,4 station electric tool postSpindle hole 82mmManual chuck, manual tailstockGSK control systemOptional configuration:Hydraulic chuck,Hydraulic tailstock,6/8 station electric turret,Spindle hole105mm,Siemens/ Fanuc control systemIndependent spindleServo main motor.Auto chip conveyor
Product Parameters

PECIFICATIONS	Units	CK6136	CK6140	CK6150
Swing over bed	mm	360	400	500
Swing over cross slide	mm	200	220	280
Distance between centers	mm	750/1000	750/1000	750/1000/1500/2000
Spindle bore	mm	52	52(Optional 82)	82
Spindle bore taper	-	MT6	MT6	MT6
Spindle nose type	-	C6	C6	C6
Spindle speed steps	-	Manual 2 steps	Manual 2 steps	Manual 2 steps
Spindle speed range	rpm	L:100-500 H:500-1800 (Optional 90-1800 stepless)
Turre/tool post	-	Electric 4 position	Electric 4 position	Electric 4 position
Tool size	mm	25 x 25	25 x 25	25 x 25
X axis travel	mm	200	230	280
Z axis travel	mm	750/1000	750/1000	750/1000/1500/2000
X axis rapid traverse	mm/min	6000	6000	6000
Z axis rapid traverse	mm/min	10000	10000	10000
Tailstock quill diameter	mm	75	75	75
Tailstock quill taper	-	MT5	MT5	MT5
Tailstock quill travel	mm	140	140	140
Main spindle motor	kw	4	5.5	5.5
Coolant pump motor	kw	0.9	0.9	0.9
Weight for 750	kg	1600	1700	1800
Weight for 1000	kg	1700	1800	1900
Weight for 1500	kg	1800	1900	2000
Weight for 2000	kg	1900	2000	2100
Dimension for 750	mm	2200x1600x1650	2200x1650x1700	2200x1700x1750
Dimension for 1000	mm	2500x1600x1650	2500x1650x1700	2500x1700x1750
Dimension for 1500	mm	3000x1600x1650	3000x1650x1700	3000x1700x1750
Dimension for 2000	mm	3500x1600x1650	3500x1650x1700	3500x1700x1750

Detailed Photos
Company Profile
FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian

---
