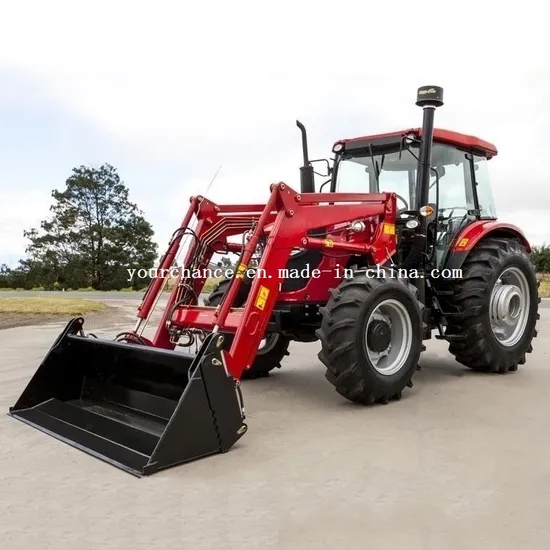

CE Certificate Tip Quality Tz02D-Tz16D 15-180HP Agricultural Wheel Tractor Front End Loader

Product Description

CE certificate High Quality Tz02D-Tz16D 15-180HP Agricultural wheel Farm Garden Tractor Front End Loader for Sale
Product Description

Detailed Photos
Product Parameters

Front End Loader Model	Drawing	Unit	TZ02D	TZ03D	TZ04D	TZ06D	TZ08D	TZ10D	TZ12D	TZ16D
Matching Tractor		hp	15-25	20- 40	30-55	45-60	55-75	70-100	90-140	140-180
Rated Lifting Capacity		kg	200	300	400	600	800	1000	1200	1600
Max.Lifting height@Implement Pivot pin	H	mm	2350	2550	2740	3010	3400	3710	3970	4260
Max. Dumping height	A	mm	1730	1840	2100	2370	2480	2720	3000	3200
Overloading height	L	mm	2170	2370	2560	2830	3220	3490	3770	4000
Dumping distance	W	mm	370	500	600	640	690	740	900	900
Ground Clearance @Arm pivot pin	B	mm	1120	1200	1360	1500	1630	1780	1930	1930
Digging depth	S	mm	90	100	100	120	140	180	200	200
Max.Lifting force @Implement Pivot pin	Q1	kg	1821	2224	2144	2150	1997	2308	2403	2620
	Q2	kg	1184	1474	1321	1286	1187	1452	1690	1850
Bucket Model(standard)			02DP125	04DP125	04DP140	06DP150	08DP160	08DP170	12DP200	16DP240
Bucket width (standard)		mm	1250	1250	1400	1500	1600	1700	2000	2400
Bucket Capacity		m3	0.16	0.18	0.21	0.35	0.40	0.44	0.7	1.6
Max Tip in Angle	X	degree °	48	48	48	48	54	54	54	54
Dump Angle	Z	degree °	52	58	58	58	58	58	58	58
Crowd angle @lowered lift arm	V	degree °	140	135	135	135	135	145	145	145
Rated Lifting Capacity		kg	200	300	400	600	800	1000	1200	160

Certifications
High quality Tractor Front end loader have ISO,CE, PVOC COC, CO etc certificates
Packaging & Shipping
The Tractor Front end loader by Iron crate Packing:
The Tractor Front end loader install on the tractor to loading container by Nude packing:
Our Advantages
After Sales Service
We sincerely supply serve Every Customer in global market !
Full series models Front end loader and vairous attchments, match for 15-1280HP tractor :
Best price will be quoted for you as soon as receive your Requirement !

---
