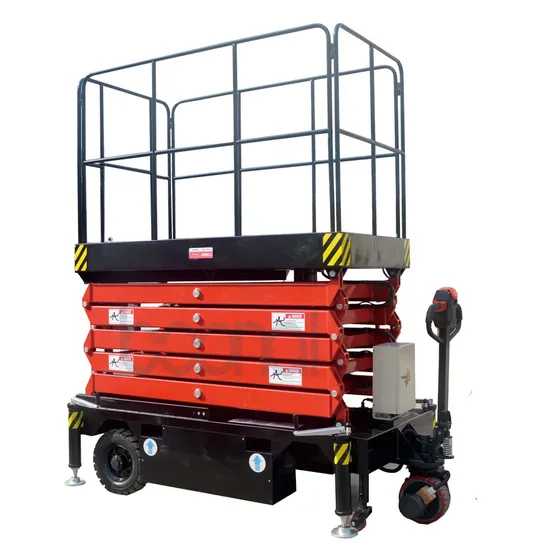

Self-Propelled Economical Scissor Lift with Max Platform (6m)

Product Description

Self-propelled Scissor Lift (economy) Max platform (6m)
Application: It is widely used for aerial installation and maintenance of the working sited such as hotel, grand hall, sport stadium, large factory, workshop, warehouse, granary, bus or railway station, airport, gas station and aerial pipeline.
Repairing street lamp Working at height Outdoor installation

Large factory Exhibition hall AerodrameCompany information
Max height of platform:3m,4.5m,6m,7.2m,9m,11m,12m for option.
Features:
1.Made of Manganese steel, enabling heavy loading
2.Scissor mechanism provides high stability when lifting
3.More than one operator could be carried simultaneously with equipped large platform
4.Mainly used in station, dock, plant and construction site for aerial working in case of machinery installation, equipment and building maintenance
Standard Configuration:
1.AC380V
2.Emergency Lowering valve
3.Leveling device with supporting screw
4.Waterproof electric box
5.Emergency stop button
Parameters Table

Model	Max platform height (mm)	Rated load (kg)	Overall weight(kg)	Platform size (mm)	Overall L*W*H (mm)	AC (VAC/kw)
SJY0.3-3	3000	300	450	1150×700	1250*850*960	0.75
SJY0.5-3	3000	500		1150×700
SJY0.3-4.5	4500	300	560	1780×840	1900*1000*1000	1.5
SJY0.5-4.5	4500	500		1780×840
SJY0.3-6	6000	300	850	1780×840	1900*1000*1120	1.5
SJY0.5-6	6000	500		1780×840
SJY0.3-7.2	7200	300	1270	2000×1000	2100*1250*1650	1.5
SJY0.5-7.2	7200	500		2000×1000
SJY0.3-9	9000	300	1500	2000×1000	2100*1250*1800	2.2
SJY0.5-9	9000	500		2000×1000
SJY1-9	9000	1000	1900	2100×1200	2200*1450*1770	4
SJY0.3-11	11000	300	1700	2100×1200	2200*1450*1810	2.2
SJY0.5-11	11000	500		2100×1200
SJY1-11	11000	1000	2860	2300×1350	2400*1600*1990	4
SJY0.3-12	12000	300	2400	2400×1350	2500*1600*1950	3
SJY0.5-12	12000	500		2400×1350
SJY1-12	12000	1000	2900	2400×1350	2500*1600*1910	4

Company information
Boonai (Suzhou) Lift Equipment Co., Ltd as a mordern manufacturing enterprise is specialized in aerial work platform,
providing package service for design, production, sales and after-sales.
With business philosophy of "Quality First, Client Oriented", we are striving for building a reputable brand of Boonai
by following the steps of the giants for the innovation of products and the improvement of process and purchasing
the perfection on every detail.
Production equipment
Company Certificates
Part or Customers
Packing
Warranty
1. User-friendly English manual for machine using and maintenance.
2. One year warranty for whole machine without man-made fault.
3. We will send you parts for free if there are any non-human factors problem during
warranty time.
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and
holidaysm engineers are available to your company if necessary.

---
