Leyo CNC Machining Center CNC Machine Fanuc Robodrill Machining Centre

Product Description

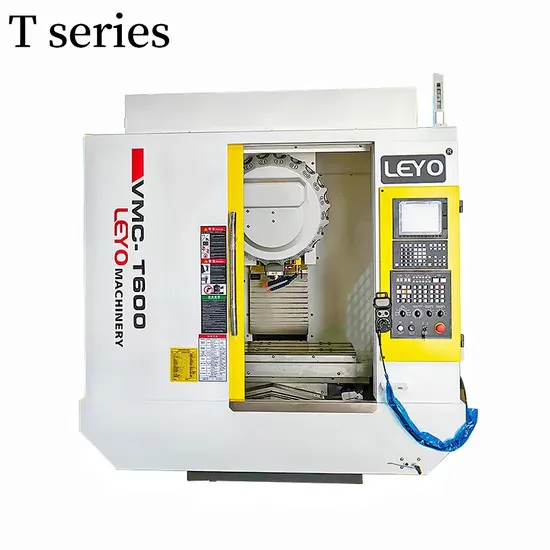

Leyo T series compact machining center describe:
The T-series compact machining center is a lightweight and compact machining center that is improved on the structure of a vertical machining center. It has the characteristics of high efficiency and high production capacity, and is very suitable for processing large quantities of small parts.
Advantages of compact machining centers:
1. The compact body design allows for more machines to be placed in the same space compared to conventional vertical machining centers.
2. Adopting a sun type servo tool magazine, compared with a arm type tool magazine, the tool change path is shorter, the tool change time is faster, with servo driven,a max tool change time can achieve 1.2 s. And the fastest moving speed is 48m/min, which increases 30% production capacity for medium and large factories.

Technical Parameters
Items	Unit	T600		T700		T800
X/Y/Z axis travel	mm	600/400/350		700/400/350		800/520/420
X/Y/Z rapid moving speed	m	48/48/48
X/Y/Z rapid feeding speed	m	20
Working table (L*W)	mm	700*420				1000*500
Working table max load	kg	300				600
Spindle taper hole		BT30
Spindle type*		Belt/Direct
Spindle motor power*	kw	5.5
Spindle speed*	rpm	20000
Controller*		GSK/HNC/LNC/SYNTEC/Mitsubishi/Fanuc/Siemens
Tool magazine capacity *	T	21 servo/None
X/Y/Z position accuracy		±0.005
X/Y/Z reposition accuracy		±0.003
Machine weight	kg	3500		3800		4000
Machine size	mm	1900*2070*2300		2000*2100*2300		2200*2200*2300
Tip:The asterisk is optional,and price is different. More requirement contact us.

Dongguan Liyang Intelligent Technology Co., Ltd., located in Houjie Town, Dongguan City, Guangdong Province, China, is a manufacturer of CNC machine integrating industry and trade. Its main products are high-end 3-5 axis CNC milling machines like high-speed cnc milling machines, gantry milling machines, etc; cnc machining center like vertical machining center, horizontal machining center, vertical horizontal dual-use machining center, compact machining center, etc; and cnc lathe, etc. These machines are mainly used in the producing and machining of parts and molds in 3c electronics, automobiles, instruments and meters, electronic appliances, medical devices, aerospace, machinery manufacturing, new energy vehicles, 5G communication industries and other industries. Our company has obtained several utility model patents and invention patents, CE certificates, ISO9001 quality management system certificates, and factory strength certification from SGS, TUV and other international testing and certification institutions. Our machinery and equipment are sold to the domestic and foreign markets. The main domestic markets are Guangdong, Zhejiang, Fujian, Sichuan and many other provinces. The international market is mainly exported to Europe, Central Asia, Southeast Asia and other countries. Our goal is to provide the world with high-quality CNC machine.
About LEYO service
1. Customized service
1. Design logo for free or remove logo services.
2. Free design of sheet metal. If you want the color of the machine appearance to be consistent with the color of your company's brand or factory decoration, we also provide free custom sheet metal design services.
3. Customized machine configuration for free. Customized according to customer configuration requirements, such as the brand and model of screw rod and linear guide rail, the brand power and speed of spindle, the brand and model of controller, and the type of tool magazine.
4. Customized special machines for free. If you have special requirements on the material, process, precision and efficiency of the products you are processing, we can customize the models based on the products you are processing.
5. Free design of automatic production line.
The customization quantity and price will vary according to the complexity of customization.
2. One stop procurement service
Provide accessories, four five axis turntable, tailstock, tool setting instrument, measuring head, chain chip conveyor, etc. Consumables like tools, tool handles, tool carts, tool boxes, etc.
3. Free online and offline after-sales service
The warranty period of all models is one year, and spare parts and online and offline after-sales services are provided free of charge within one year. However, the travel expenses of after-sales personnel need to be paid by the customer, such as transportation, board and lodging.Lifetime free online after-sales technical guidance service.
4. Fast delivery service
If you need it urgently, please tell me the expected delivery date, and we can arrange it according to customer needs. The fastest production time is 7 working days.

---
