High Quality Competitive Price Big Capacity Mobile Wood Chipper for Whole Tree Lwc 1000

Product Description

Wood chips are required as the starting material in the wood processing line, which places wood chipper in an indispensable role in the wood processing industry. With the high strength steel, double feeding system, the drum wood chipper is mainly suitable for processing undersized logs, wood residue (twigs, branches) and fiber agro waste such as hemp pole, reed stalks, bamboo etc. Distinct design, compact structure and simple operation make wood chipping machine enjoy popularity during wood processing industry and biofuel processing industry.

Model	Capacity	Knife qty	Power	Feeding port		Maxi log diameter	Chips length	Weight
GWC215	≈3 t/h	2/3 pcs	45kw	160x400 mm		160mm	20-35 mm	2.9t
GWC216	≈5 t/h	2/3 pcs	55kw	230x540 mm		200mm	20-35 mm	4t
GWC218	≈8 t/h	3/4/5 pcs	110kw	300x680 mm		300mm	20-35 mm	7.2t

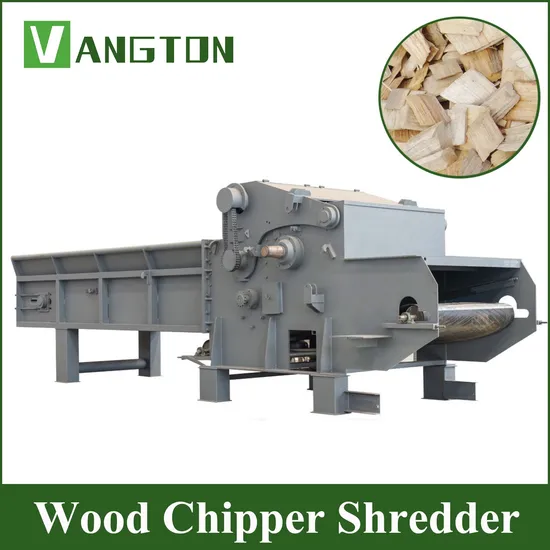

Drum Disc Wood Chipper Shredder Machine is mainly suitable for processing undersized logs, wood residue (twigs, branches) and fiber agro waste such as hemp pole, reed stalks, bamboo etc.
Model			1250		1400		1600
Feeding port size (mm)			1250*600		1400*600		1600*800
Quantity of hammers (pc)			24		24		32
Speed (rpm)			880		880		900
Max size of log (mm)			300-400		300-400		500
Chip size (mm)			20-30		20-30		20-50
Capcacity (t/h)			8-10		10-15		20-25t
Motor (kw)			132		160		220
Feed suspension variable frequency motor (kw)			5.5		7.5		15
Chain plate feeding variable frequency motor (kw)			7.5		11		18.5
Solenoid valve integrated oil pump motor power (kw)			3		3		3
Primary conveyor motor power (kw)			5.5		5.5		5.5

The wide variety in sizes and designs of drum chippers guarantees an individual and customized solution for optimal operation in every field of application. With the extensive product range, the drum chippers can be extended and combined to complete and fully automatic processing systems.
Features of Drum Wood Chipper
1.Compact structure, simple operation, the drum wood chipper has a wide application for wood materials chipping and biomass materials processing.
2. Adopting the double roller feeding system, the drum wood chipper has a higher efficiency than the common one.
3. The chipper body is made of high strength steel, firm, shock-resistant, with less noise.
4. A series of screen for choice, the drum wood chipper can process wood chips with a variety of size and thickness for different requirements.
5. Special design and reliable blades layout, the drum wood chipper works more efficiently. The wood chips is of even length and uniform thickness.
6. With the hydraulic buffer system, the maintenance of the chipping machine is simple.
Applications of Drum Wood Chipper
With advanced structure and special blades layout, the drum wood chipper is technically suitable for undersized logs processing. In fact, the drum wood chipper can process a variety of materials. The common raw materials for the drum wood chipper are undersized wood logs, wood branches, wood barks, waste board.
Technical specification
The feeding of the wood chips is effected by specially serrated feed rolls (they are surface treated and guarantee a long service life). The feed rolls are powered by high-performance slip-on bevel gears.
The adjustment of the chipping blades is realized outside the machine with a blade alignment gauge. The counter blade can be removed quickly and easily at the side of the machine. The blade can be used and resharpened quadliterally. The elevated post-chipping screen and the rigid blade bar ensure homogenous wood chips.
OUR PROJECTS
OUR CERTIFICATE
THE CLIENTS WITH US
OUR SERVIC
Pre-sale service
1.Our professional and experienced engineer team helps every client to find his most suitable equipment or chose of plant.
2. Any kind of legal logo printing or design are available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
After you choose:
1. We will make drawing and show you how the pant looks.
2. Every equipment will be checked carefully before packing. Video on machine testing is available.
3. Email you the tracking no., and help to chase the container until it arrives you.
After-sale service
1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone.
FAQ
Q. what is your payment term?
A: T/T 30% down payment, balance to be paid before shipment.
Q: what is your main market?
A: South America, Eastern Europe, Southeast Asia, Africa, Oceania, Eastern Asia
Q: what is your producing time?
A: Producing time depends on that machines you ordered. Usually takes 45 days.
Q: what documents you can offer?
A: We can offer invoice, packing list, contract, instructions, customs declaration, certificate of origin, CE. If client need other documents, specifications, please confirm with service staff.
Q: If equipments have some quality problem, how would you deal with?
A: We will responsible for all the quality problems. We will check the machine to get the problem. If need parts, will send them to you.
Q: how to install the equipments?
A: We send 1-2 engineer (100usd/person/day) to the local plant for helping install and commissioning equipments. To save time, our service stuff will tell you what to prepare in advance. We can also teach the workers to how to use the machines and how to make the products better.

---
