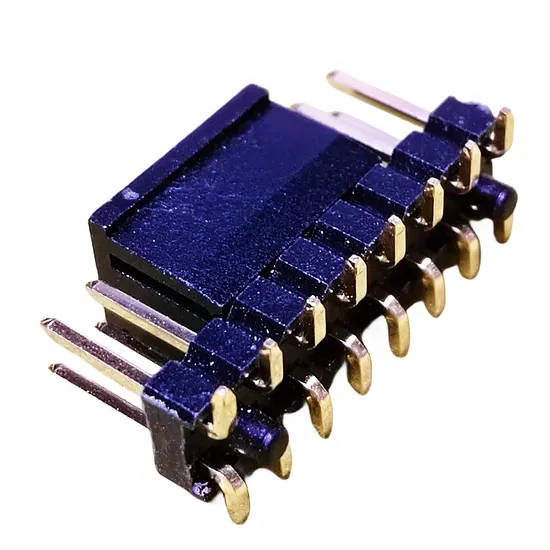

Customized 2.54mm SMT Dual Row Connector

Product Description

ZYSZ offers a complete line of headers and sockets in pitches from 0.200" to 1mm in both through hole, STM and press fit technology.1.Standard specification:

Pitch	1mm,1.27mm,2mm,2.54mm,3.96mm,5.08,1.778mm
Material	PA6T,PA9T,LCP
Insrlator Material	Polyester(UL94V-0)
Contact Material	Brass
Contact Plating	AU OR SN OVER 40u" NI
Current Rating	3Amps
Withstanding Voltage	AC 500Vmin/Minute
Insulation Resistance	1000M Min
Operation Temperature	-40ºC to +150ºC
Package	Bag packing,Tube packing,Tape&Reel packing
Application	Pcb board
Positions	1-40pin
Samples	Provided
Confirmation	Drawing will be provided before production

2.Main of standard of headers and socket :
0.039" [1mm] Contact Centers Headers & Sockets
0.050" [1.27mm] Contact Centers Headers & Sockets
0.079" [2mm] Contact Centers Headers & Socket
0.100" [2.54mm] Contact Centers Headers & Sockets
0.156"[3.96mm] - 0.200"[5.08mm] Contact Centers, Headers
3.Part of datasheet
Many datasheets did not display the list,If you don't find the datasheet what you need. please contact us.
4.Custom connector
Step:
(1) Customer send the drawing or sample to ZYSZ.
(2) Engineer department estimate the cost base on customer' drawing.
(3) Quote for customer and discuss details
(4) Confirm PI and get payment, about 30~35days ship sample to customer for qualified.
(5) Aafter confirm samples, start production mass.
5.Quality standard
Inspect goods 100% before pack. all products with 12months guarantee quality.
6.Packing and Shipping
~Packing: Standard tray,Tube,Roll and Bag. if special package requiremtnes acceptable.
~Shipping:
If customer have forwarder angent in China, we can send goods to their warehouse.
If customer want to ship by OWN express account, that is ok.
If you need we ship , we have express for choose,like DHL, TNT, UPS, Fedex, EMS, ARAMEX, SF, other service acceptable
7.Delivery time:
Small order delivered within 5-9 days, bulk order depending on the actual situation,ususally 10-20days. when the holiday is coming, we will inform customer delivery time.
8.Certificate:
ISO 9001, ISO14001, CE, ROHS,UL
--------------------------------------------
About us :
ZYSZ INDUSTRY CO.,LTD was established in 2002 year,a professional manufacturer of electronic connector industry; also we build all tooling for mould, stamping and injection and production.
Our factory covers area of 6, 500 square meters with more than 185 staffs and strictly follow ISO 9001:2000-certified operation
Professional Team : We have a full team that strictly inspects our production process from raw materials to finished products. We have 12 R&D personnel and 18 engineers with more than average 8 year' experience in this field,some engineer work in this feild more than 25 years.
Our engineering department works with the most advanced CAD software to design not only connectors, but custom products as well. They also design our injection molds and progressive stamping dies. Continual research is in progress regarding new materials and techniques. ZYSZ uses high quality Toshiba injection molding machines. Our molding capabilities include connections, but our flexible mold design allows us to mold almost any small component in a variety of materials that inlcude Nylon, PBT, PPS, and LCP.
Product range include electric connector,pin header,pin connector,electrical,terminal block,connector,audio connector,d-sub,2mm hard metric,futurebus,female header,socket,wire connector,din41612, Board to Board seires.
Production Equipment:
This only show a part of conner of the tooling(molding) for customer in last these years.
2017 IN GuangZhou Carton Fair and 2018 IN HK electronic Fair.
Some customers visit factory
F A Q: Who we are? A professional fastener manufacturer specialized in Connectors,Molding,Tooling with over 20 years of rich experience.
What can we do for you? 1. Professional manufacturer 2. Best material selection 3. Best lead time and stable production 4. Rich experience on export business 5. Professional services 6. Quality control
Why do you choose us? Responsibility, Efficiency, Loyalty, Win-Win, Punctuality, Cost effectiveness.
When could we cooperate? Whenever you want.
Where are we from? We located at Shenzhen,convenient transportation.
How can customize products? Attach your drawings with details(Suface treatment,material,quantity and special requirements etc).
How long can I get the quaotation? We will give you the quotation within 12 hours(Considering the time difference).
How can I get a sample for testing? We will provide free or charged samples depends on the products.
How long will produce the parts? Normally within 10 working days ,we will arrange the produce schedule depends on the quantity and the delivery.
What's your payment terms? We accept T/T is preferred.
How about the transportation? Samples by air (if not too heavy),otherwise by sea or air.
What if the products we received are not good? Contact us without hesitation,our special after-sales service will take the responsibility

---
