Br-20h-400 Hard Rail Turning -Milling CNC Machine CNC Lathe with Inclined Bed

Product Description

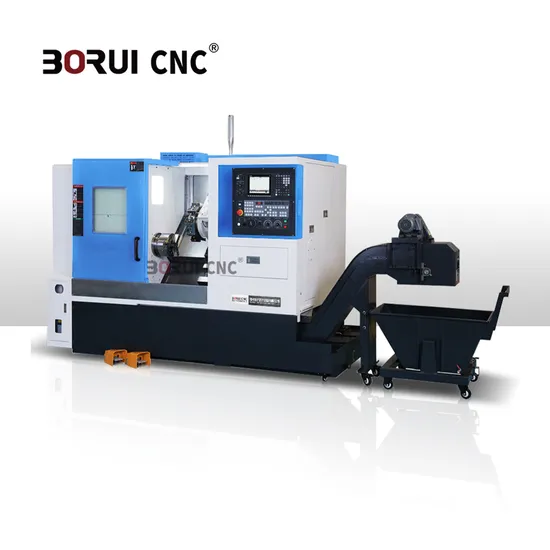

BR-20H-400 hard rail turning -milling cnc machine cnc lathe with inclined bed
Product Description
Features:
The X and Z guide rails are all hard rails.
45 ° inclined bed structure, which has the best processing stability, and in addition to scrap more easily;X, Z axis for wide embellish hardened rail track, with big span "design, when heavy cutting, more highlights the unique stability, the hardening treatment and precision grinding with artificial shovel; Lathe bed used HT300 cast iron is a integrated, high rigid structure.
Application:
Slant Bed cnc Lathe machine is mainly used for processing all kinds of shaft parts, disk parts, you can turn a variety of
threads, arcs, cones and rotary body inside and outside the surface, to meet the ferrous metal and nonferrous metal high-speed cutting speed demand. Suitable for automotive, motorcycle, electronics, aerospace and other industries on the rotary parts for efficient, high-volume, high-precision processing.

Product Parameters

Machine Model	Item	BR-20H-400	BR-20H-400D	BR-20H-400DY	BR-20H-500	BR-20H-500D	BR-20H-500DY
Main Parameter	The max.swing diameter over bed	Φ460	Φ600	Φ600	Φ450	Φ630	Φ630
	Max. machining diameter	Φ400(Φ460:280 cutterhead)	Φ450	Φ400	Φ350	Φ380	Φ380
	Max. swing diameter over cross slide	Φ260	Φ350	Φ340	Φ300	Φ350	Φ380
	Max. processing length	400mm	350mm	360mm	520mm	465mm	500mm
	Distance between centers	420mm
Spindle And Chuck	Spindle end type (optional Chuck)	A2-6(8″)	A2-6(8″)	A2-6	A2-6(8″)	A2-6(8″)	A2-6(8″)
	Spindle motor power	11-15KW	11-15KW	11-15KW	15KW	15KW	11-15KW
	Spindle speed	3000rpm	3000rpm	3000rpm	4000rpm	3000rpm	3000rpm
	Spindle through hole diameter	Φ61	Φ61	Φ61	Φ66	Φ66	Φ61
	Through the bar diameter	Φ52	Φ52	Φ52	Φ52	Φ52	Φ52
	Spindle motor mounting form				Vertical flange	Vertical flange
Feed	X/Z axis lead screw specification	3210/3210	3210/3210	3210/3210	3210/4010	3210/4010	3210/4010
	Yaxis lead screw specification			2508			3210
	X-axis limit travel	245mm	245mm	255mm	220mm	220mm	230mm
	Y-axis limit travel			60(±30)			60(±30)
	X-axis motor torque	11N.M	11N.M	11N.M	11N.M	11N.M	11N.M
	Y-axis motor torque			7 N.M			11N.M
	X/Z axis linear guide specifications			Hard Way	Hard Way	Hard Way	Hard Way
	Y axis linear guide specifications			Hard Way			Hard Way
	Z-axis limit travel	420mm	420mm	500mm	560mm	560mm	500mm
	Z-axis motor torque	15N.M	15N.M	11N.M	11N.M	15N.M	11N.M
	X,Z axis connection type	Direct connection	Direct connection	Direct connection	Direct connection	Direct connection	Direct connection
	Y axis connection type			Direct connection			Direct connection
Turret	Turret	H80	SHD20U-330	Y axis hard rail power tower		BMT55-350	TCSDY80H-12T-330
	Turret center height size	80mm	80mm,100mm		145mm	100mm
	Tower station	8T/12T		15T	10T	12T	12T
	Power head specification			BMT40/ER20			BMT55/ER32
	Power head speed			4000rpm			5000rpm
	Power head motor power			2.5KW			2.5KW
	Power head to motor transmission ratio			1∶1			1∶1
Tailstock	Sleeve diameter	75mm	75mm	75mm	75mm	75mm	75mm
	Sleeve travel	80mm	80mm	80mm	80mm	80mm	80mm
	Tailstock max.travel	300mm	300mm	300mm			400mm
	Tailstock sleeve taper	MT4	MT4	MT4	MT4	MT4	MT4
Overall Dimension	Bed type and inclination	Integrated/45°	Integrated/45°	Integrated/45°	Integrated/45°	Integrated/45°	Integrated/45°
	Machine size(L * W * H)	1850x1020x1500	1850x1020x1500	2110x1280x1750	2770x1835x1770	2770x1835x1770	2850x1835x1770
