50 Ton Truck Crane Lifting Equipment Zoomlion 16t Truck Cranes

US$67,000.00
1 Set
US$66,500.00
2 Sets
US$66,000.00
3 Sets
US$65,000.00
4 Sets
US$64,000.00
5+ Sets

Basic Info.

Model NO.
ZTC160E451
Certification
ISO9001
Condition
New
Maximum Lifting Height
>40m
Maximum Lifting Weight
16ton
Shaft Number
3
Crane Jib
Four-Arm
Type
Folding
Max. Rated Total Lifting Capacity
16ton
Max. Load Moment of Basic Boom
980kn.M
Gradeability
37%
Traveling Speed
78 Km/H
Span
9.5-16m
Place of Origin
Hunan, China
Min. Ground Clearance
220mm
Transport Package
Nude Package
Specification
lifting height of boom: 33.8m
Trademark
zoomlion
Origin
China
HS Code
8705102300
Production Capacity
1000unit/Year

Product Description

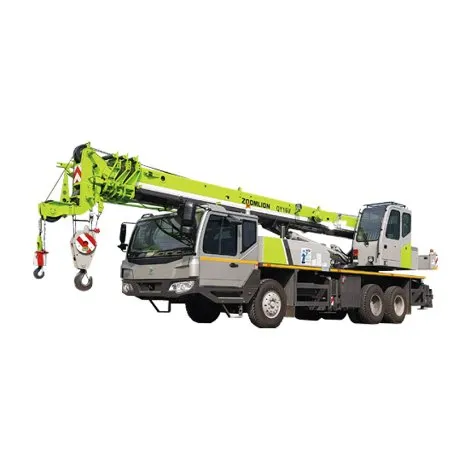

50 ton truck crane lifting equipment Zoomlion 16t truck cranes
Product-Features
• Continuously overall promotion makes our lifting capacity of crane be improved once and once again.
• 43m main boom , two section jibs (9.5,16m).
• Optimized central slewing position increases the lifting capacity of the crane over rear.
• Large outrigger span improves the working stability of the crane greatly.
• Adopt internationally advanced structure analysis and calculation methods to develop the lifting capacity of crane deeply.
• Leading boom manufacturing process in trade.
Specifications
Item Value Remarks
Working performance rated lifting capacitykg 16000
load moment of basic boom 980
kN.m
load moment of boom lengthkN.m 573
lifting height of basic boom m 11.5
lifting height of boom m 33.8 Deformation of the boom is
not taken into consideration.
lifting height of jib m 41.6
Working speed hoist rope speed (main winch) m/min 120 At 4th layer
hoist rope speed(auxiliary winch) m/min 100 At 2nd layer
Boom derricking times 40
Boom extending times 60
Slewing speed r/min 0~2.2
Traveling specifications traveling speed km/h 78
gradeability % 37
Min. turning diameter m ≤22
Min. ground clearance mm 220
Limits for exhaust pollutants and smoke Meet with related standards GB3847-2005
GB17691-2005
(National stage III)
Oil consumption per hundred kilometers L 45
