MBJ-3000 Stone Profiling Machine for special shapes

Product Description

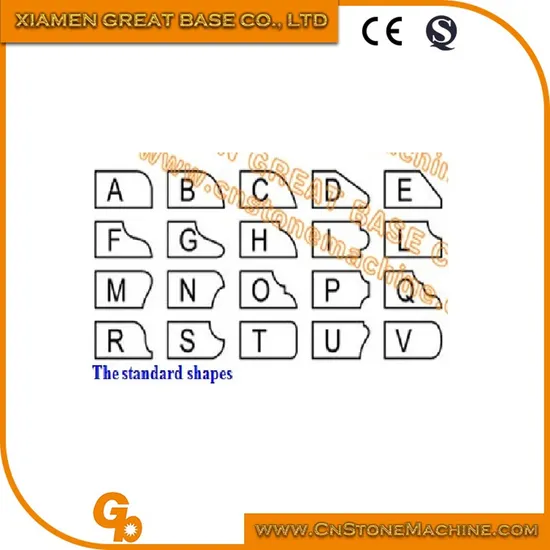

MBJ-3000 Edging Machine is used to shape various stone edge profiles. The whole machine is compact designed for application in stone fabrication shops.

There are grooves and fixing device for fixing stone piece on the bench easily and steadily.

The polishing head can automatically run back and forth along the bridge to do polishing work. Manual driving the polishing head run by winding the hand wheel is also available.

Polishing head vertical and horizontal position adjustment is also realized by winding hand wheel. The polishing head can rotate 360 degree to polish stone edge from any angle.

In addition to shaping stone edge, this machine can also be used for drilling stone holes with drilling tools.

Two supporting racks are attached to the bench side to support wide stone piece.

MBJ-3000 Edging Machine operation is easy by the buttons in control cabinet.

Name	Unit	MBJ-3000
Polishing head motor power	kw	4/3.3 (double speed)
Effective processing length	mm	≤3000
Effective processing width	mm	≤600
Stone thickness	mm	≤150
Drilling stone hole diameter	mm	6-150
Polishing head automatic running speed	m/min	0.2-4
Polishing head rotating angle		360˚
Polishing spindle tilting angle		±8˚
Polishing head stop position in work		any site within the bridge
Polishing curve stone edge		interior and exterior curve edge
Polishing spindle rotating speed	rpm	1900-3800
Machine overall dimensions (LxWxH)	mm	3760x1550x1510

Main Features
1) Machine with competitive price and high quality ,easy in installation and maintenance.
2) Adopting advanced world famous brand components in electric parts .
3) Guarantee for one year.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ
1. Do you have more stone machines?
Yes, we can produce all series of stone processing machines with competitive price and high quality.
2. Where is your factory?
Our factory locates in Xiangbei Industry Zone,Xiang'an,Xiamen,Fujian.
3. Do you have agent?
We don't have agent as we all sell directly to our customer, in this way, the customer can get lowest cost.
4. How much is this machine?
Please tell me your stone is granite or marble, the size, your destination port, so that I can quote you best price.
5. How long can I get my product?
Normally it takes 30 days to produce our products

---
