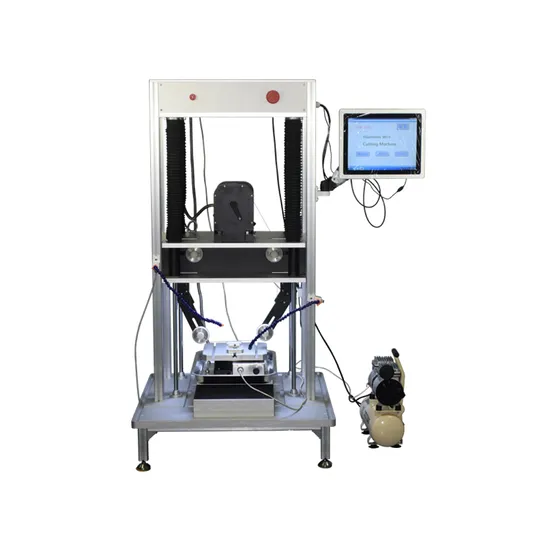

Small Precision Endless Diamond Wire Saw Cutting Machine Optical Lens Glass Cutting Machine

Product Description

Small precision endless diamond wire saw cutting machine optical lens glass cutting machine
Product Description Introduction of diamond wire saw:
Compact Diamond Wire Saw is specially designed for material researchers. It is used for precision cutting of fragile material samples. It can slice, cut, and square materials. The rotary workbench can also cut the sample at a certain angle. The materials include ceramics, crystals, glass, metals, rocks, thermoelectric materials, infrared optical materials, composite materials, and biomedical materials. When using it for ultra-thin precision cutting, the thickness of samples (within the range of about 1 inch) can reach 0.08mm. Product Parameters Technical parameters of diamond wire saw:

Main feature	It can be used for cutting various materials with different hardness, especially for brittle and easy cleavage crystal cutting. Simple operation and excellent processing quality. Adopt aluminum profile structure, beautiful and light. With adjustable tension, the tension output is more uniform and the adjustment is more accurate. Minimum Ø0.08mm diamond wire can be used
Technical parameter	Power supply voltage: 220V 50Hz Spindle speed: adjustable within 2rpm-260rpm Total length of cutting line: 20m The distance between the inner side of the two guide wheels: 100mm Y-axis travel: ≤50mm Z-axis travel: ≤60mm Two-dimensional fixture: horizontal rotation 0-360°, left and right inclination ±15° Object plate size: 62mm×51mm Cutting depth: ≤50mm Maximum sample size for cutting: Ø50mm×50mm
Product Size	510mm×500mm×1099mm
Weight	50kg
Standard accessories	Tensioner		2 PCs
	Guide wheel		2 PCs
	Diamond wire		3 volumes
	Water pump		1 PCs
Optional accessories	Diamond wire (Ø0.125mm, Ø0.25mm, Ø0.35mm, Ø0.42mm)

Detailed Photos
Company Profile Zhengzhou Tainuo Film Materials Co., Ltd. is a comprehensive company integrating design, research and development, production and sales.Our company's main products are: spin coater, thermal evaporation coater, magnetron sputter coater, plasma sputter coater, E-beam evaporation coater, PLD pulse laser coating machine, plasma cleaner, CVD system, PECVD system, diamond wire cutting machine, melting furnace/stove, arc melting furnace, etc.Our products are widely used in the field of materials science research. We have extensive cooperation with domestic universities, laboratories, and new material companies. It has been successfully exported to more than 20 countries and regions including the United States, the United Kingdom, Germany, Russia, Switzerland, Canada, Brazil, etc. and have established long-term cooperative relationships with local dealers.If you are conducting materials research, please contact us and we will provide you with customized services to make your research experiments smoother!
Packaging & Shipping We can ship the diamond wire saw diamond wire cutting machine by sea, by air, by land, by express, also can arrange the shipment according to your requirements.
FAQ Q. Are you manufacturer or trading company?
A. We are professional manufacturer of laboratory instruments, We have professional R&D team and workshop, which can promise the qulaity and after-sale service.
Q. How's your warranty?
A. Our warranty is 12 months, and provide lifetime maintenance. We provide 24 hours on-line service.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A. 5-10 days----in store. Customzied products---It usually takes 30-60 days depending on your requirements.
Q. Power supply and plug?
A. We can provide products accroding to your local voltage and plug standard.
Q. How to pay?
A. T T, L / C, D / P, etc.
Q. How is the package of goods? Delivery methods?
A. Standard export fumigation sign wooden box packaging or as your requirements.

---
