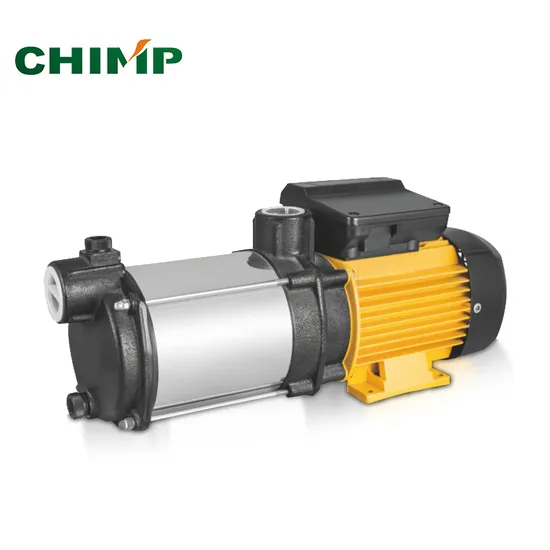

Chimp 5m Series Multistage Centrifugal Water Pumps with CE

Product Description

PUMP
Max. liquid temperature: +85 ºC
Max. suction: 8m
Max. inlet pressure: limited by Max. operating pressure
Pump body: Cast iron / Stainless steel
MOTOR
Motor with copper winding
Build-in thermal protector for single phase motor
AISI 304 shaft
Insulation class: B or F
Protection class: IPX4
Max. ambient temperature: +40 ºC
Cooling: External ventilation
PUMP INSTALLATION AND APPLICATIONS
It is applicable to household water supply, equipment support, pipeline pressurization, garden watering, vegetable greenhouse watering, fish farming and poultry raising, industrial and mining, water supply and drainage of enterprises and high-rise buildings, central air conditioner and centralized heating circulation system, etc.

MODEL	POWER		FLOW ( m³ / h)	HEAD (m)	MAX. SUCT (m)	INLET/OUTLET (in)	GW (kg)	PACKING DIMENSION (mm)
	KW	HP
2M	0.37	0.5	3.3	18	1	1''X1''	8.7	385x140x187
3M	0.55	0.75	3.7	26	1	1''X1''	9.5	410X140X187
4M	0.75	1.0	3.8	36	1	1''X1''	10.3	435X140X187
5M	1.1	1.5	4	43	1	1"*1"	10.3	480X140*187

FAQ Q: What is your MOQ of this item?A: Our MOQ is a full 20ft container, first time cooperation, we accept trial order to check quality. Q: Is it acceptable to make customers' own brand?A: Sure, we can do OEM. Q: What are your payment terms? A: 30% T/T deposit, 70% against documents, or L/C at sight. Q: How long is your warranty?A: One year! Q: What is the delivery time?A: 25-30 days after receiving your L/C or T/T deposit.
Contacting information: ZHEJIANG QIANTAO PUMPS CO.,LTD(CHIMP)

---
