Square Pipe Bending Machine Bending Machine for Pipe and Tube/Automatic CNC Electric Platform Type Round Pipe / Steel Pipe Bending Machine

Product Description

CNC SS Square Steel Pipe And Tube Bending Machines
Pipe bender machine Product Description:
The Platform pipe bending machine is applicable for bending stainless steel and other kinds of thin-wall metal pipes into arc shapes. It is suitable for round, square and rectangular pipes and features smooth round bending.
Pipe bending machine technical Parameters :

Model	WG-26	WG-38	WG -51	WG-76
Bending diameter range	4-26mm (thickness:2mm)	4-38mm (thickness:2mm)	4-51mm (thickness:3mm)	4-76mm (thickness:3mm)
Bending Speed	20/sec	10-12r/min	4-6r/min	3-5r/min
Max Bending Angle	180	180	180	180
Min Bending Angle	5	5	5	5
Motor power	1.5kw	3kw-4	3kw-4	4kw-4
Power supply	380V,50HZ,3P	380V,50HZ,3P	380V,50HZ,3P	380V,50HZ,3P
Foot switch voltage	DC 5V	DC 5V	DC 5V	DC 5V
Overall dimension	800*650*900	900*800*1000	950*850*1000	1000*900*1100
Total weight	180kg	260kg	320kg	350kg
Remarks: this is machine price without molds, the molds needs to customize as client's request.

Model	WG-76(2)	WG-100	WG-150
Bending diameter range	4-76mm (thickness:4.5mm)	Below 100mm (thickness 5mm)	Below 150mm (thickness 5mm)
Bending Speed:	3-5r/min	4-5r/min	4-5r/min
Max Bending Angle:	180	180	180
Min Bending Angle:	5	5	5
Motor power:	5.5kw-4	5.5kw-4	7.5kw-4
Power supply:	380V,50HZ,3P	380V,50HZ,3P	380V,50HZ,3P
Overall dimension	1100*900*1100mm	1800*2000*1350mm	1900*2100*1400mm
Total weight:	400kg	About 1200kg	About 1500kg
Remarks: this is machine price without molds, the molds needs to customize as client's request.

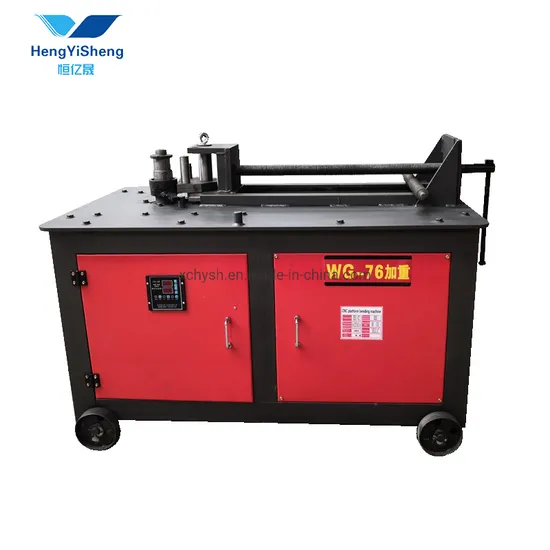

Pipe bending machine pictures:
Pictures of package and delivery:
Our services
1.OEM orders are accepted: We can manufacture machines according to your requirement with your design, logo, color, material and brand information.
2.Constantly service before and after sales:our sales and engineers could provide constantly service for you.
3.Training service: free training is offered if you send for your workers to our factory.
4.Engineers available to provide overseas service: We could send for engineer to construction site to install machine and train workers.
The finished pictures
Why Choose HengYiSheng?
HengYiSheng Machinery has:
Quality Advantage
The High quality but Mid-range price, durable quality brings you continuous profits.
Category Advantage
We provide full category of cutting machine, bending machine, straightening machine, stirrup machine, and machine.
Service Advantage
Our company provides two year warranty time.
Technique Advantage
All machines are with easy operation, new users could operate machine in few minutes.
Delivery Advantage
Our company set logistic center in large cities in China, assures you get machines at first time.
