Utl Two Poles Otl DIN Rail Terminal Blocks for Copper and Aluminium Connectors Jut10-50/2

Product Description

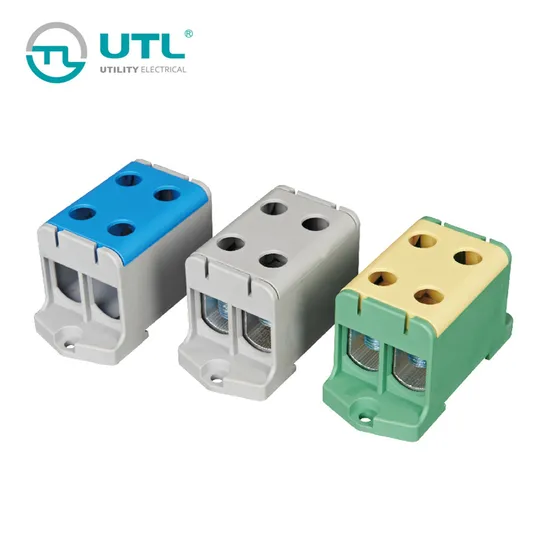

JUT10 Series Bi-metal Copper & Alumium Conductor Universal Terminal Block
Features of product
JUT10 Series universal terminal blocks are designed for copper and aluminum conductors. The terminals are suitable for all types of copper or aluminum conductors with cross-section up to 240 mm². It is very practical to use them in places where the copper and aluminium wires are connected. Multiple copper wires can be placed to the terminal blocks according to the respective terminal type. IP protection class for OTL terminals is IP20. Advantages: 1. Competitive price
2. Prompt delivery, we make stocks, small quantity can be delivered in short time. 3. Skilled worker and professional management provide good service from begin to end Specification
Product Parameters

Item	Universal terminal blocks ( OTL terminals)
Place of Origin	Zhejiang, China
Brand Name	UTL
Model Number	JUT10 series
Type	Modular terminal block
Material	Housing: Polyamide
	Screw: Hexagon
	Conductor: Aluminum
Poles	1 pole, 2 poles, 3 poles
Color	PE:Yellow/Green, GY: Grey, BE: Blue
Mounting	Dain Rail for JUT10-50, JUT10-95, JUT10-150, Screw for JUT10-240
Standard	EN61238-1, EN60947-7-1, EN60947-7-2
JUT10-50 , 1 Pole Al/Cu 2.5-50mm2	Nominal Current /Voltage Cu 160A/800V, Al:145A/800V Tighten Torque (Nm): 4Nm (35-95mm@) 12Nm( 120-120mm2)
JUT10-50/2 , 2 Pole Al/Cu 2.5-50mm2
JUT10-50/3 , 3 Pole Al/Cu 2.5-50mm2
JUT10-95 , 1 Pole Al/Cu 16-95mm2	Nominal Current /Voltage Cu 245A/800V, Al:220A/800V Tighten Torque (Nm): 20Nm
JUT10-95/2 , 2 Pole Al/Cu 16-95mm2
JUT10-150 , 1 Pole Al/Cu 35-150mm2	Nominal Current /Voltage Cu 320A/750V, Al:290A/750V
	Tighten Torque (Nm): 14Nm (35-95mm2) 24Nm( 120-150mm2)
JUT10-240, 1 Pole Al/Cu35-240mm2	Nominal Current /Voltage Cu 425A/800V, Al:380/800V
	Tighten Torque (Nm): 12Nm( 120-120mm2) 40Nm (95-240mm2)
Payment term	A.Below US$500, western,paypal is accepted
	B.Above US$500, bank account
Certificate	TUV/CE/VDE/CCC/CQC approved standard
Logo/Brand	Customized logo is available as request
Design ability	We can supply sample, OEM&ODM is welcome

Packing & Delivery Standard Export Package for Terminal Blocks Company Profile
Our Services:
* Produce and provide good quality terminal blocks
* Suitable comprehensive solution provider for involved electrical terminal block project
* Professional technicians and skilled workers provide good service
* Quick and perfect after-sales service
* Related Patent and Certificate is available for our products Quality is our core strength, competitive price and prompt delivery is our advantage. FAQ 1. who are we?
We are based in Shanghai, China, start from 2013,sell to Eastern Europe(40.00%),Western Europe(20.00%),Southern Europe(10.00%),Northern Europe(10.00%),North America(10.00%),Eastern Asia(10.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Terminal Blocks,Cable Gland,Indicator Light,Push Button,Machine Equipment
4. why should you buy from us not from other suppliers?
we have over 30 years experience in wiring solution with own manufacturer base . we get UL VDE TUV certificates for terminal blocks we have about 300 workers to shorter the delivery time
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese

---
