Indoor Flexible LED Display Shaped Video Wall Soft Advertising Screen Promotion Billboard Full Color LED Display Board (Module P1.25, P1.5, P1.875, P2, P3, P4)

Product Description

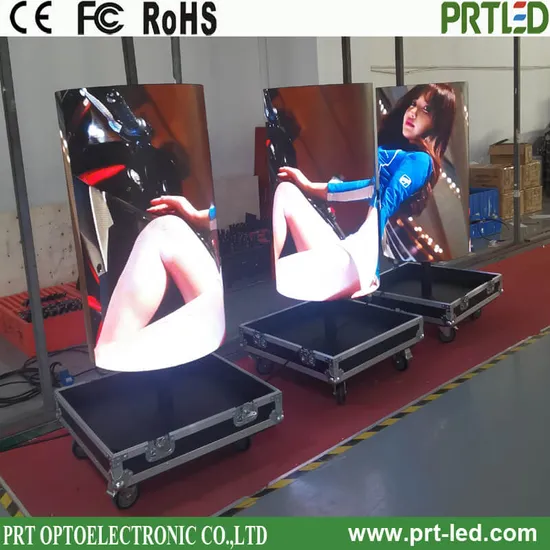

Soft/ flexible full Color LED Display Module for indoor use, can be fixed with magnets for different curved shaped led screens
Features:
1. Small pixel pitch ensure good vision effect for closed view distance, friednly to eyes,
2. Black led lamp body, high contrast rate, high definition up 1080P
3. Wide view angle with 160° for horizontal and 140° for vertical, no strobe,no image distortion and color cast from different angle
4. SMD LED encapsulated technology make slim thickness and good heat dissipation, energy-saving
5. Dot to dot maintain, easy and quick maintenance, save maintenance cost
6. Small module size is easy for different screen sizes,Cylindrical screens with different diameters
7. Modules with magnetics combined for different shaped screens seamlessly
8. Widely used for different curved,Cylindrical screens with different screens as request

we have different tiles for selection:

Product	P1.25	P1.579	P1.667	P1.875	P2	P2.5	P3	P4
LED component	1R1G1B(full color)
Led type	SMD1010	SMD1010/SMD1212		SMD1212/SMD1515	SMD1515		SMD1515/SMD2121	SMD2121
Density(dots/m2)	640000	401111	360000	284444	250000	160000	111111	62500
Module size(mm)	240x120x8.6(L x W x D)
Module dots	192x96	152x76	144x72	128x64	120x60	96x48	80x40	60x30
Scan mode	1/48	1/38	1/36	1/32	1/30	1/24	1/20	1/15
Driving IC(optional)	ICN2065	ICN2065	ICN2065	ICN2153	ICN2153	ICN2153	ICN2038S	ICN2038S
Refresh rate(Hz)	3840	3840	3840	≥2880	≥2880	≥1920	≥1920	≥1920
Frequency (Hz)	50&60
Gray scale(bit)	12-16(adjustable)
Interface	HUB75
Module material	Silicone soft bottom case
Module weight(kg/pc)	0.215	0.203	0.195	0.216	0.205	0.175	0.175	0.170
Cabinet size	According to order
Cabinet material	iron
Cabinet flatness(mm)	≤ 0.2	≤ 0.3
IP grade	IP45
Install/maintain mode	Front/back
brightness(nits)	≥600	≥650	≥700	≥750	≥750	≥750	≥900	≥850
Color temperature(K)	3000-10000(adjustable)
Uniformity	≥97%
View angle	V≥160°, H ≥140°
Contrast ratio	5000:1
Supply voltage DC(V)	5	5	5	5	5	5	5	5
Max current DC(A)	3.8	3.5	3.2	3	3	3	3	3
Max power(w / pc)	19	17.5	16	15	15	15	15	15
Input voltage AC(V)	110-220
Max power(w/m2)	1000	1000	800	800	800	800	800	800
Ave.power(w/m2)	340	340	270	270	270	270	270	270
Lift span(hrs)	100,000
Working temperature(ºC)	-10-50
Storage temperature(ºC)	-20-60
Working humidity(RH)	20-85%
Storage humidity(RH)	20-80%

More pictures for reference:

---
