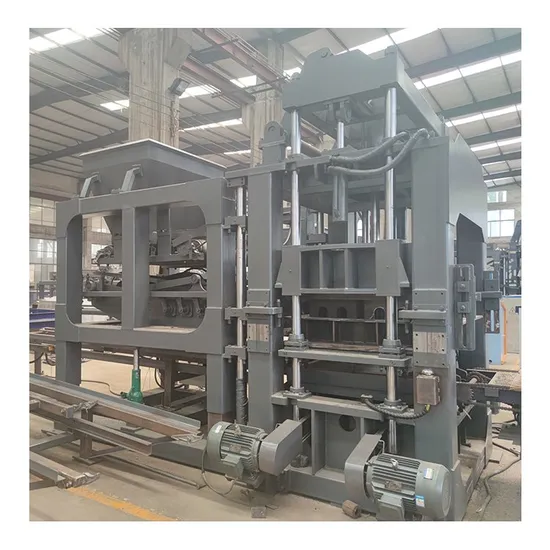

Block Making Machinery Qt8-15 Machine Efficient Block Moulds for Concrete Bricks Cement

Product Description

Product Description
1.Advantages& Main Technical Parameter The machine can serve several purposes and can produce pavement bricks,riverside bricks,revetment bricks,square bricks,grassed bricks with dif- ferent molds.Low frequency in feeding material,high frequency vibration.Plat- form vibrating works together with mold, So that the concrete can be fully fluidified and exhausted in two or three seconds to reach the high density.The advanced technique of hydraulic-controlled proportion can handle the oil press and amount of the system freely, therefore, different materials can be able to produce the high quality products.All the procedures are operated by PLC and equip with out-and-in data device to realize person-machine conversation.
Its equipment advantages:

1).Mature and efficient vibration system to ensure the density of the product.
2).Electromechanical, hydraulic, and pneumatic synchronous drive control, the height error of the same pallet product is extremely small.
3).Computer controls the supply of materials to ensure uniform feeding.
4). Fast vibration start-up speed, high molding pressure, short vibration elimination time, effectively shortening the molding cycle.
5).The equipment has a short molding cycle and a high density of products, which can achieve instant stacking, save pallets, and effectively reduce customer investment costs.

Overall Dimension	8300*2800*2900mm
Rated Pressure	21 MPa
Main Vibration form	Platform Vibration
Vibration frequncy	2800-5100 r*min
Pallet size	950*900 mm
Molding cycle	15-20 S
Exciting power	85 KN
Overall power	51 KW

Detailed Photos
1.Molding InformationThe sample size and detailed parameters of more brick types are shown in the following figure.You can choose the mold you need according to these specifications.



2.Details and other accessoies The following appliances are greatly convenient for the use of the block machine.
Cement Silo
50-100T cement silos are commonly used in brick machine production lines: There are two types: split type and integral type:
(1)The split type is assembled with screws and sealing strips, which is convenient for transportation, saving transportation space and freight, but the cost is high and the installation period is long. However, the split type is generally used for foreign trade. (2) The integral welding type has low cost and short installation period, but it is not convenient for transportation (only
50T can be placed in a 40-foot high cabinet), and large-capacity ones generally do not have the conditions for welding and installation at the customer's location.
Batching Machine
PL series concrete batching machine is a front-end automatic batching equipment used in conjunction with a mixer. It can automatically complete the batching process of sand, stone, cement and other species according to the concrete ratio requirements designed by the user. The equipment is composed of a storage hopper, a weighing system, a feeding system, an electronic control system and other parts. The feeding methods include belt conveyors.
JS750 mixer
The JS series concrete mixer is different from the JQ series. It is a twin-shaft forced mixer. It has the dual advantages of independent operation and the ability to form a concrete mixing station with supporting products such as the PL series batching machine. It can mix dry hard concrete, plastic concrete, lightweight aggregate concrete and various mortars. The whole machine design of this series of products is reasonable, the layout is novel, and it is easy to use and maintain.
Conveyor Belt 8M
The mixer mixes the raw materials and sends them to the hopper via a conveyor belt.


stacker
The block stacker is one of our new products , it can take 3-4 pallets block per time , and stacking 4-5 layers block . The
forklift cant ake 10-20 pallets block , save work time , reduce the labor cost and curing land area .Then reduce the block
manufacturing cost , is one of our best selling products
Packing&Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.



Company Profile
Shandong Hongfa Scientific Industrial & Trading Co., Ltd. founded in 1990,is located at Dazhuang Development Zone, Yi'nan County, near Yimen Mountain. We are a non-government enterprise with 1,000 staff members, near No. 227 Provincial Highway, with Ridong Expressway to the south, Jinghu Expressway to the west and Jiaoxin Railway to the east. Yihe River is 500m away from us, which is rich in ground water source, with good water quality and sufficient industrial and civil use water. we mainly produces all kinds of Cement Cuting machines,concrete mixing plant,Tile Making machines,Pipe Making machines and presses,etc.,all the construction and building material equipments manufactured by this enterprise are conformity with the standards of the state.With our persistent tenet of "to survive by quality; develop by credit", Gao Chengfa-our manager, on behalf of all staff members, welcomes your visit and cooperation.

Certifications
