20L Polyurethane Liner Horizontal Sand Bead Grinding Mill for Sulphur Suspended Agent

Product Description

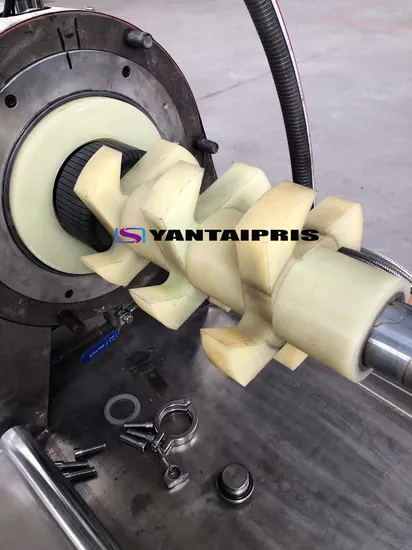

Why do you need the horizontal sand mill with polyurethane(PU) liner and what is its features?
Polyurethane elastomer is a new type of polymer composite material between rubber and plastic. It has both the high strength of plastic and the high elasticity of rubber.
Its features are:
1. Wide range of hardness. It still has the elongation and resilience of rubber at high hardness. Polyurethane elastomers have a hardness range of Shore A10-D80.
2. High mechanical strength, their breaking strength and bearing capacity are much higher than general-purpose rubber under rubber hardness. At high hardness, its impact strength and bending strength are much higher than that of plastic.
3. The wear resistance is very outstanding, generally within the range of 0.01-0.10 (cm3)/1.61km, which is about 3-5 times that of natural rubber.
4. Excellent oil resistance. Polyurethane elastomer is a kind of strong polar polymer compound, which has little affinity with non-polar mineral oil, and is hardly corroded in fuel oil and mechanical oil. It is 4 times that of nitrile rubber.
5. Good oxygen and ozone resistance.
6. Excellent vibration absorption performance, can be used for vibration reduction and buffering. In the mold manufacturing industry, it can replace rubber and springs.
7. Has good low temperature performance.
8. Radiation resistance. Polyurethane has good resistance to high-energy rays, and still has satisfactory performance under the radiation dose of 10-10 g.
9. Excellent acid and alkali resistance, low temperature resistance and solvent resistance.
10. The bonding strength with the metal skeleton plate is high, and it can be machined.
1. Horizontal sand mill is a kind of high-efficiency wet ultra-fine grinding widely used in non-metallic mineral industries such as coatings, dyes, paints, inks, medicine, magnetic powder, ferrite, photosensitive film, pesticides, papermaking and cosmetics. dispersion machinery.
2. Horizontal sand mills can be divided into ordinary horizontal sand mills, rod-pin horizontal sand mills, toothed disc horizontal sand mills and turbo horizontal sand mills according to different structures.
3. The horizontal sand mill integrates the essence of the current domestic and foreign models. It has the advantages of high efficiency, strong work continuity, less pollution, reliable automatic control, etc., and has the advantages of low cost, compact structure, generous shape, and convenient use and maintenance. It is very practical.
4. Classification:
1) Ordinary horizontal sand mills are divided into: 5L-300L according to the effective volume of the working cylinder.
2) According to the material in contact with the material, it is divided into carbon steel and stainless steel, lined with polyurethane, zirconia ceramics, etc.
3) According to the specific use conditions and requirements, it is divided into explosion-proof and ordinary motors.
Technical data: (Welcome you to supply your materials for trial run!)

	Model	PSM-D-5L	PSM-D-10L	PSM-D-20L	PSM-D-30L	PSM-D-50L	PSM-D-100L	PSM-D-200L	PSM-D-300L
1	Grinding chamber capacity	5L	10L	20L	30L	50L	100L	200L	300L
2	Main motor	5.5KW	11KW	18.5KW	22/37KW	30/37KW	45/55KW	75/90KW	90/110KW
3	Length(mm)	1250	1400	1650	1800	1900	2000	2800	3200
4	Width(mm)	650	850	900	900	1000	1000	1200	1300
5	Height(mm)	1350	1450	1450	1450	1500	1900	2200	2300
6	Weight(Kgs)	320	400	500	650	1000	1500	2070	2760
7	Separator type	D	D	D	D/S	D/S	D/S	S	S

Company workshop show:
Why do you choose us and believe us ?
We treat every process of design and production with a scientific and rigorous attitude. The laboratory is equipped with a micro-scale sand mill and a nano-scale sand mill for customers to make raw material grinding tests, which is convenient for customers to select models. At the same time, it is equipped with a wet laser particle size analyzer to measure the grinding effect.
We also seriously attach great importance to after-sales feedback, constantly accumulate customer experience, and constantly remodel and innovate. We provide different design and selection suggestions for different industries, and grow together with customers is our original intention.

---
