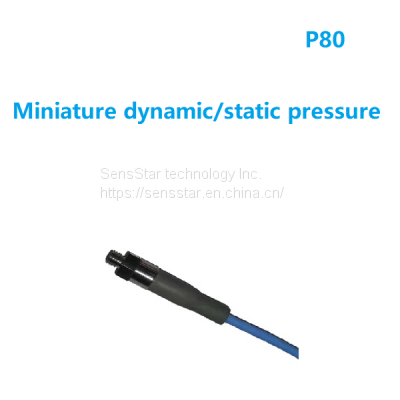

Miniature dynamic/static pressure transducer, MEMS pressure sensor P80:
SensStar deign and provide P80 series miniature pressure transducer, diameter 4mm, 5mm, 6mm ultra micro pressure sensor, micro pressure transmitter, used in hydrodynamic test, pneumatic test and other occasions, optional explosion-proof type, with very low pressure range, please consult us for details.
Applications: aerodynamics, aerodynamic test, hydrodynamic test
Features: excellent linear accuracy, small size, low range, high sensitivity
Range: 3-6000kpa
Output signal: mV, 0-5V, 4-20mA
Accuracy : 0.1% 0.25% 0.5%
Power supply: 24 VDC , 5VDC
Operationing temperature: - 20 to + 85 ℃, -40 to + 120 ℃, others pls contact us.
The p80 series miniature explosion-proof pressure sensors produced by SensStar and a domestic research institute are used in many research fields, such as aircraft and engine test, fluid mechanics and hydraulic test, water turbine and underwater weapon test, chemical explosion or nuclear explosion shock wave, etc. Because of the consideration of not changing the measured flow field or the limitation of the placement position, when the in-situ pressure measurement is necessary, there are often more stringent requirements for the miniaturization of the overall size of the sensor, in order to reproduce the change law of the dynamic flow field without disturbing the flow field state. Nvp80 micro pressure sensor is made of integrated pressure and resistance sensor by micromachining technology with micro design, which is finely and ingeniously packaged, and its outer diameter is usually less than 0 Φ 3mm to Φ 12mm, length no more than 30mm, and can be customized according to the shape and size required by users. Nvp80ex series miniature explosion-proof pressure sensor series is characterized by its compact shape, high output, high temperature, excellent dynamic and static characteristics and high reliability. The performance index of the product reaches or approaches the international level of similar products.
P80M04
1. Measurement range: 5kpa ~ 2MPa G
2. Minimum diameter: φ4
3. Zero output: 0 ~ 2mV
4. Full scale output: 50 ~ 200mV
5. Natural frequency: 0 ~ 150kHz
6. Response frequency: 0 ~ 40 kHz
7. Pressure hole: φ1.3
P80M05
1. Measurement range: -100KPa~2MPa G/A
2. Minimum diameter: φ5
3. Zero output: 0 ~ 2mV
4. Full scale output: 50 ~ 200mV
5. Natural frequency: 0 ~ 150kHz
6. Response frequency: 0 ~ 40 kHz
7. Pressure hole: φ1.3
P80M6
1. Measurement range: -100KPa~2MPa G/A
2. Minimum diameter: φ6
3. Zero output: 0 ~ 2mV
4. Full scale output: 50 ~ 200mV
5. Natural frequency: 0 ~ 150kHz
6. Response frequency: 0 ~ 40 kHz
7. Pressure hole: φ1.3
P80M8
1. Measurement range: -100KPa~3.5MPa G/A
2. Minimum diameter: φ8
3. Zero output: 0 ~ 2mV
4. Full scale output: 50 ~ 200mV
5. Natural frequency: 0 ~ 150kHz
6. Response frequency: 0 ~ 50 kHz
7. Pressure hole: φ1.5
P80M10
1. Measurement range: -100KPa~40MPa G/A
2. Minimum diameter: M10*1
3. Zero output: 0 ~ 2mV
4. Full scale output: 50 ~ 100mV
5. Natural frequency: 0 ~ 600kHz
6. Response frequency: 0 ~ 200 kHz
7. Pressure hole: flush with the pressure sensing film
>>
