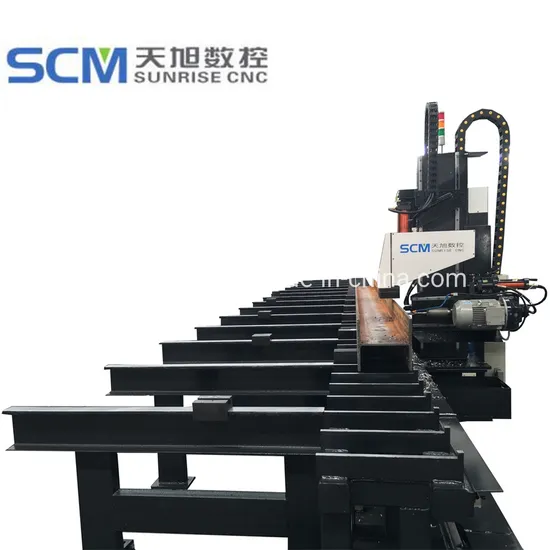

Used for the drilling processing of H-shape steel, box beam, angle steel and channel steel of steel structure, bridge, three dimensional garage and petrol platform.
Product feature: PLC systems, LCD screen display, programming Microsoft based on WINDOWS platform, fast and convenient programming, and visual previewing.
2. Main machine, hydraulic pressure, electric components are famous products domestic and abroad. Equipped with automatic feeding system, which will clamp and feeding material into machine automatically. Double linear guides' infeeding, precision much higher and more stable.
| Model | DZL600 |
| The process size H beam, mm | 50x50-600x600 |
| Max. Length of work piece, m | 14 |
| Max. Drilling thickness, mm | 100 |
| Motor power of spindle, kw | 4 |
| Drilling speed, rpm | 120-560 |
| Feeding mode of spindle, mm/min | 20-300 (Stepless) |
| Max. Feeding stroke, mm | 300 |
| Max. Drilling diameter, mm | 40 |
| Quantity of axis | 2 |
| X axis Servo motor, kw | 4.4 |
| X axis Feeding speed, m/min | 40 |
| X axis drive mode | Adopt linear guide + rack drive, single feeding conveyor 7m(can be spliced) |
| Z axis Servo motor ,kw | 1.3 |
| Z axis Feeding speed, m/min | 12 |
| Z axis drive mode | Adopt linear guide+ball screw drive |
| Power supply, V | 380V |
| CNC system | PLC Mitsubishi PLC |
| Weight ,kg | About 7500 |
| Overall size, mm | About 14000 x 3000 x 2500 |
