Sensors Weather Station GPS Mobile Charger, Lawn Lamp Customized Design Waterproof SMT ETFE Small Solar PV Module Sunpower Photovoltaic Cells Mini Powered Panel

Product Description

Product SpecificationHexagon Shape ETFE Embossed Solar Panel
Product Specification
Rated Power: 0.11W
Tolerance: ±5%
Open Circuit Voltage Voc:5.4V
Short Circuit Current Isc:26.2V
Working Voltage Vm:4.5V
Working Current Im:24.5mA
Product Dimension: Diagonal 40mmx1.8mm±0.2mm
Water Protection: IPX6
Weight: 3g
Abnormal Shape ETFE Embossed Solar Panel
Product Specification
Rated Power: 1.1W
Tolerance: ±5%
Open Circuit Voltage Voc:14.4V
Short Circuit Current Isc:100mA
Working Voltage Vm:12V
Working Current Im:92mA
Product Dimension: 130mm*80mm*2mm±0.2mm
Water Protection: IPX6
Weight: 25.7g

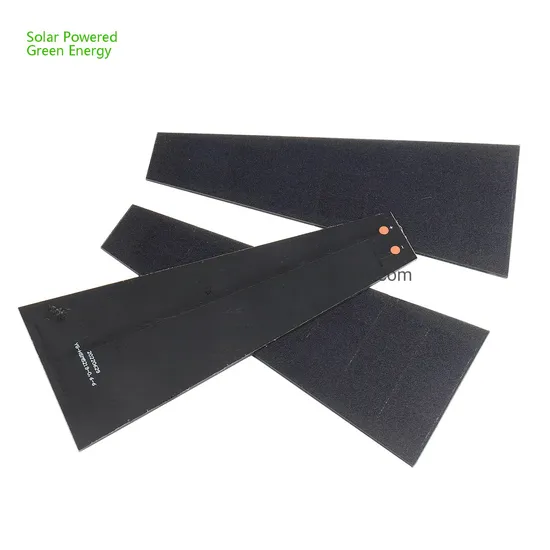

Fan Shape ETFE Embossed Solar Panel
Product Specification
Rated Power: 8.2W
Tolerance: ±5%
Open Circuit Voltage Voc:24V
Short Circuit Current Isc:440mA
Working Voltage Vm:20V
Working Current Im:410mA
Product Dimension: 473mm*150mm*2mm±0.2mm
Water Protection: IPX6
Weight: 140g
Glass Plane Shape Solar Panel
Product Specification
Rated Power: 2.8W
Tolerance: ±5%
Open Circuit Voltage Voc:20.4V
Short Circuit Current Isc:178mA
Working Voltage Vm:17V
Working Current Im:165mA
Product Dimension: 380mm*70mm*5mm±0.5mm
Water Protection: IPX6
Weight: 182g
Round Shape Frosting PET Solar Panel
Product Specification
Rated Power: 1W
Tolerance: ±5%
Open Circuit Voltage Voc:14.4V
Short Circuit Current Isc:90mA
Working Voltage Vm:12V
Working Current Im:84mA
Product Dimension: Diameter 100mm*2mm±0.2mm
Water Protection: IPX6
Weight: 24.2g
Square Shape Frosting PET Solar Panel
Product Specification
Rated Power: 1.1W
Tolerance: ±5%
Open Circuit Voltage Voc:6V
Short Circuit Current Isc:235mA
Working Voltage Vm:5V
Working Current Im:220mA
Product Dimension: 80mm*80mm*2mm±0.2mm
Water Protection: IPX6
Weight: 20.2g
Abnormal Shape Frosting Solar Panel
Product Specification
Rated Power: 0.9W
Tolerance: ±5%
Open Circuit Voltage Voc:6V
Short Circuit Current Isc:193mA
Working Voltage Vm:5V
Working Current Im:180mA
Product Dimension: 183mm*65mm*2mm±0.2mm
Water Protection: IPX6
Weight: 28.4g
Round Shape Transparent PET Solar Panel
Product Specification
Rated Power: 0.11W
Tolerance: ±5%
Open Circuit Voltage Voc:5.4V
Short Circuit Current Isc:24mA
Working Voltage Vm:4.95V
Working Current Im:22mA
Product Dimension: Diameter 39.5*1.8mm±0.2mm
Water Protection: IPX6
Weight: 2g

---
