Cooray Crl46t Static Turret Slant Bed Tailstock Fanuc/Siemens CNC Turning Lathe

Product Description

Product Description

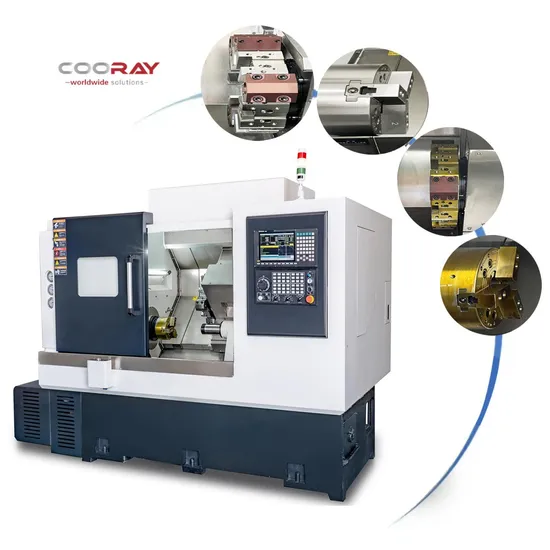

COORAY CRL46T live turret slant bed tailstock FANUC/SIEMENS CNC turning milling compound machining center lathe.
The integral foundation is 45° inclined bed casting, which occupies a small area but provides great quality;
it can handle the turning process of brass, bronze, aluminum, steel, stainless steel, and hard plastic, with rod diameter up to φ45mm or single workpiece diameter up to φ380mm.
The high-rigidity cast iron body provides the possibility of higher hardness and better smoothness (smaller roughness).
High-rigidity cutting is suitable for the machining of complex multi-process products such as long shaft turning, drilling, and tapping. Equipped with an automatic lubrication system, it ensures a stable and long-lasting drive system.
The CNC system works with high-quality electrical components to provide fast operation and durability.

Roject	Specifications	TC-400
Process capability	Maximum turning diameter	400mm
	maximum machining diameter	280mm
	maximum machining length	350mm
travel stroke	X-axis travel	180mm
	Z-axis travel	350mm
Feed	X/Z direction of the screw rod	X3210, Z3210
	X/Z guide rail	35 roller guide rail
Precision parameters	X, Z repeatability precision	0.003-0.005mm
	X, Z positioning accuracy	0.003-0.005mm
Lathe bed	The tank is a one-piece frame structure	Japanese high and low rail 30°
Main shaft unit	maximum speed	3500(rpm)
	Through hole diameter	52mm
	Axial end form	A2-5/6
	Recommended power	5.5-7.5KW
	Magnetic ring encoder	Tenda / Bally
Tail unit	Top sleeve diameter	80mm
	Top taper	MT-5
	Top gear has a maximum travel	100mm
	Tail position	Steel guide
Size	Put on the approximate size of the whole machine	2000*1450*1650mm
Weight	Pure optical weight	1650kg

---
