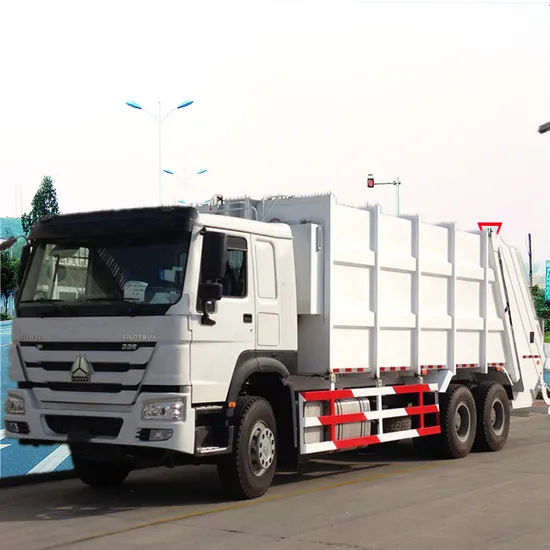

Sinotruk HOWO 6X4 8X4 18cbm 20cbm Garbage Compactor Truck

Product Description

HOWO 6X4 Garbage Compactor Truck-18CBM

Product Description

Cabin	Driving type 6X4 LHD
	HW 76 cabin ,two seats,one bed & air conditioner
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm	9700X2500X3600
	Wheel base (mm)	4300+1350
	Wheel track (front/rear) (mm)	2022/1830
	Approach/Departure angle(°)	16/15
Weight in KGS	Tare Weight	15630
	payload	25370
	Front axles loading capacity	1x9000
	Rear axles loading capacity	2x16000
Max. driving speed(km/h)		90
Engine	Brand	SINOTRUK
	Model	WD 615.69
	Type	4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	336
	Emission standard	Euro II
Gearbox	HW 19710 ,10 Forwards gear & 2 reverse gear
Tire	12.00R20 all steel radial tire, total 10+1 pieces
Garbage Compactor	Compactor Size: 18cbm Filler Capacity: 2.5cbm Working Pressure: 20 MPa Cycle time of filling: ≤25 Lifting Time of Filler: 8-10s Time of Discharging: ≤40s Front / Rear Sewage Tank volume: 250L/150L Max. Compression Force:>35000Kgs The technical advantages and features of the compressed garbage truck: ¬ 1) The top-loading structural parts are well-selected, which fundamentally guarantees the performance and service life of the whole vehicle. ¬ 2) Padded precision rails and MC nylon sliders make up the most advanced skateboarding pay. ¬ 3) The hydraulic system adopts double pump and double circuit (European popular type) to achieve energy saving and consumption reduction. ¬ 4) The operation mode is electronic control-manual dual use, which is the best solution in the domestic control mode of compressed vehicles. ¬ 5) The key hydraulic components are imported brands with advanced functions and reliable quality. ¬ 6) The sealing system adopts hydraulic automatic locking and sealing mechanism to completely solve the problem of sewage dripping. ¬ 7) Filling the garbage is compressed by two directions, which expands the actual loading capacity. ¬ 8) Configure multi-function manipulators, which can turn 240 liters of two barrels, 1 1 liter trash can, and 800 liter trash cans. ¬ 9) Equipped with a trash can cleaning device, two nozzles are installed in the filler to clean the trash can.

Detailed Photos

Company Profile
Why Choose Us
Worldwide Sales, Marketing and Service Network
During the past 15 years, we have exported over 5,000 units of different kinds of heavy duty trucks to over 50 countries in Africa, Middle East, Southeast Asia, and South America. Our overseas authorized truck dealers and service dealers are all around the world.
Wide Ranges of Various Modified Trucks with Different Applications
Our main products range from Dump Truck, Tractor Truck, Concrete Mixer Truck, Van Truck, Lorry Truck, Off-road Dump Truck, Tanker Truck, Truck Mounted Cranes, trailer, tanker trailers and all other kinds of modified trucks. We can design, produce and supply our customers with any special vehicle.
Flexible Payment Terms for Different Trucks and Business
Besides traditional payment terms such as TT, LC, we still offer our stable and long-term partners with various financial support and credit payment terms at different periods.
Excellent and Outstanding After Sales Service
Our professional technicians and mechanics and parts staff always concentrate all our products and our customers. Top Starting Point, High Quality and Worry-free Service is our promise to all our customers.
High Efficiency is One of Our Goal and Promise to Our Customers
We will be always with our customers whenever and wherever we are. All problems and questions shall be solved by our end at the first time. Customer priority outstands without any doubt.

Latest Truck Development and Trends Shall Be Delivered Regularly
We have abundant technical team, familiar with local and major exporter product standards. Our customers will be regularly updated with the latest truck development and trends in China and other countries.

Who we are?
The most professional truck and spare parts distributor in China;
The leading truck and spare parts exporter in China;
The most comprehensive truck and spare parts solution provider in China;
The most worry-free and most satisfactory and reputable supplier for you in China.
We will never let you down if you choose us.

Contact us:
Sales Manager: Lock Wu

Mobile+86 15801934694
Mobile(Standby): +86 18621866987

---
