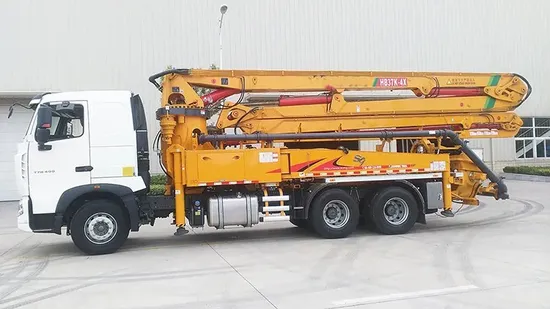

37m New Diesel Mini Mounted Concrete Pump Truck Hb37K Mobile Small Concrete Pump Truck

Product Description

V7 series truck mounted concrete pump is a new generation equipment which is developed by SCHWING Germany technology.
It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,
More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology,
more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology,
safer and smarter electrical control system.
Performance advantages:
* Large diameter (230 mm) Φ, large displacement (130 / hour) pumping systems.
* Material absorption can reach more than 85%.
*Effectively reduce emissions with the reversing, vulnerability of longer life.
* The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
* The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.

Description		Unit	Parameter value
Outline dimension		mm	12000×2500×3900
Overall weight		kg	24500
Chassis	Model		ZZ5307N4647C
	Max. speed	km/h	90
	Max. grade-ability	%	40
	Wheelbase	mm	4600+1350
	Tire		11.00R22.5
Engine	Model		WD615.96
	Max. power	kW	279
	Max. torque	N·m/(r/min)	1590/1100~1600
	Displacement	L	9.276
	Emission standard		Eruo III
Pumping system	Theoretical output	m³/h	130
	Concrete pumping pressure	MPa	8
	Theoretical pumping times	Time/min	24~27
	Delivery cylinder diameter ×stroke	mm	φ230×2000
	Max. diameter of pumping concrete	mm	40
	Filling height	mm	1580
	Concrete slump range	cm	8~23
Placing boom	Reach height	m	29.6
	Reach depth	m	18
	Slewingradius	m	36.5
	Slewing angle	°	±270
	Unfolding angle of the 1st section	°	90
	Unfolding angle of the 2nd section	°	180
	Unfolding angle of the 3rd section	°	245
	Unfolding angle of the 4th section	°	235
Stabilizer span	Longitudinal span of stabilizer	mm	6421
	Transverse span of front stabilizer	mm	5430
	Transverse span of rear stabilizer	mm	7381
Others	Lubrication method		Automatic lubrication
	Control method		Manual/remote control
	Volume of water box	L	600
