Product Details
Product Description
Product Description

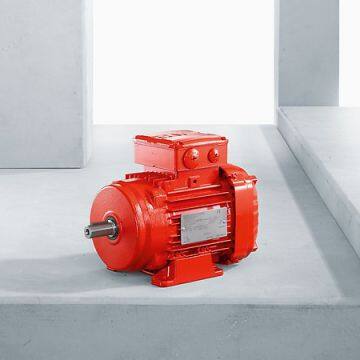

DR../DRN/DR2.. motors support all global standards and norms
Motors for efficiency classes IE1 to IE4
Compact design saves space and costs
Significant time savings thanks to optimized processes in motor selection, order processing, and logistics
Future-proof, also as regards environmental protection (standards)
The “global motor” combines many energy efficiency regulations and laws in one design: the DR.. series
Reduction in operating costs when using energy-efficient motors; our energy-efficient motors conform to the efficiency classes
Standard Efficiency (IE1)
High Efficiency (IE2)
Premium Efficiency (IE3)
Super Premium Efficiency (IE4)
Comprehensive braking concept and combinations i.e. up to three different brake sizes per motor size featured in the range
Cost-optimized built-in encoders fully integrated into the motor
Frequency 50 HzFrequency 60 Hz
| Connection | D / Y | D / Y | YY / Y or DD / D |
Standard voltages
V | 230/400 V or
400/690 | 220 / 380 or
380 / 660,
254 / 440,
266 / 460 or
277 / 480 | 220 / 440,
230 / 460 |
IE3 global motor
Standard voltages
V | 220 – 240 / 380 – 415,
220 – 230 / 380 – 400
or
380 – 400 / 660 – 690
| 254 – 277 / 440 – 480
or
254 – 266 / 440 – 460 |
|
IE gradeNumber of polesMotor type
Sizeat frequency of 50 Hzat frequencies of 60 Hz and 50/60 Hz
Power
kW | Power
kW | Power
hp |
| IE1 | 2-pole | DR2S..
56 – 80 | 0.18 – 1.5 | 0.18 – 1.5 | 0.25 – 2 |
| 4-pole | 0.09 – 1.1 | 0.09 – 1.1 | 0.10 – 1.5 |
| 6-pole | 0.09 – 0.55 | 0.09 – 0.55 | 0.10 – 0.75 |
| IE1 | 2-pole | DR2S..
71 - 132 | 0.37 – 9.2 | 0.37 – 9.2 | 0.50 – 12.3 |
| 4-pole | DR2S..
71 - 315 | 0.18 – 200 | 0.18 – 200 | 0.25 – 225 |
| 6-pole | DR2S..
71 - 160 | 0.25 – 7.5 | 0.25 – 7.5 | 0.33 – 10 |
| IE2 | 4-pole | DRE..J
71 – 100 | 0.37 – 5.5 | – | – |
| IE3 | 2-pole | DRN..
63 - 132 | 0.18 – 7.5 | 0.18 – 7.5 | 0.25 – 10 |
| 4-pole | DRN..
63 - 315 | 0.12 – 200 | 0.12 – 225 | 0.15 – 300 |
| 6-pole | DRN..
63 - 160 | 0.09 – 7.5 | 0.09 – 7.5 | 0.10 – 10 |
| 8-pole | DRN..
71 - 80 | 0.09 – 0.25 | 0.09 – 0.25 | 0.10 – 0.34 |
| IE4 | 4-pole | DRU...J | 0.18 – 4 | – | – |
Energy efficiency specifications
on the nameplate |
The nameplate contains the respective information on the local efficiency regulations, e.g. the marking according to IEC
IE classification with numerical value of efficiency during line operation for 50 Hz and 60 Hz
USA: ee label (by DoE, Department of Energy, EISA 2007)
Canada: CSA (Energy Verified) label (EER 2010)
China: CEL label (GB 18613)
Brazil: ENCE label
South Korea: KEL label in accordance with REELS 2010
India: BIS label
|
>>
