Embossing Machine for Metal Sheet Plate Embossing Tile Forming Machine with Roller and Motor Core Components for Industries

Product Description

Product Description

Embossing Machine for Metal Sheet Plate Embossing Tile Forming Machine with Roller and Motor Core Components for Industries

Product Parameters

Type	Embossing Roofing Sheet Making Machine
Embossing roller	Solid ø440*1150
Bearing	Torrington spherical roller bearings ,TWB 3003136. Embossing thickness adjusted through the dial.
Bearing box	400*400*160mm
Driving	11kw AC motor
reducer	BWED53-17*11-11KW 4P
Speed	10m/min
Pressure mode	hydraulic system, ø150 oil cylinder 2pcs Closed shields, safety devices. Emergency stop switch
Hardness of embossing roller surface	HRC 58~62
Depth of hardness surface	5-10mm
Material of embossing roller	60CrMnMo
Pattern laser engraving	as customer`s sample

Product Display

	Leveling device upper 7 down 9 leveling rollers.with handwheels adjustable for leveling different thickness.

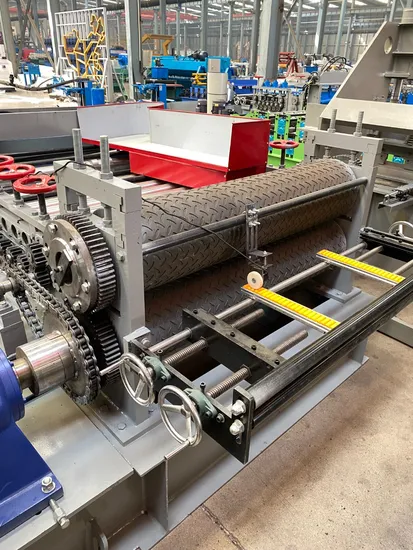

	Embossing machine Pattern customized. Can use for different raw material and thickness. Handwheels easy adjustable.
Embossing rollers detailsGood pattern, solid good hardness.
PLC control system PLC brand:Delta(Taiwan) PLC, and transducer and touched screen Encoder brand:Omron Electrical components:Schneide r Operating language:English and Chinese(or as requested) You can set the orders on this part,changing product length and quantity,it is really easy to operate,and there are aviation plugs to make it much easier to install the machine while it arrived.
Hydraulic station Hydraulic station motor:5.5KW Hydraulic oil:46# hydraulic oil Main components:Include a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And one of electromagnetism valve

Use selling Tile Type
Certifications

Company Profile
Our Customers

PACKAGING&LOGISTICS

FAQ
Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

---
