Tecniwell Jet- Grouting Cement and Water Mixing Machine 30m3/H Grout Mixer Agitator Pump Plant

US$24,500.00

1 Set

US$23,500.00

2+ Sets

Basic Info.

Model NO.

CSM30

Shotcrete Type

Wet

Machining Process

Hydraulic

Structure

Rotor Type

Productivity

50m²/h

Feeding Height

1400mm

Vibrating Amplitude

2.6mm

Certification

ISO9001: 2000

Condition

New

Color

Customer Request

Application

Foundation, Tunnel, Subway

Mixer

3 M3

Agitator

1.5 M3

Dimension

Same as 20gp Container

Pump Capacity

40-50m3/H

Pump Model

Customized

Pump Quantity

1,2, 3 or More

Additive

1,2,3 as Per Client′s Requirement

Customization

Acceptable

Transport Package

as 20FT Container

Specification

same as 20ft container

Trademark

SDDOM

Origin

China

HS Code

84749000

Production Capacity

10sets/Month

Product Description

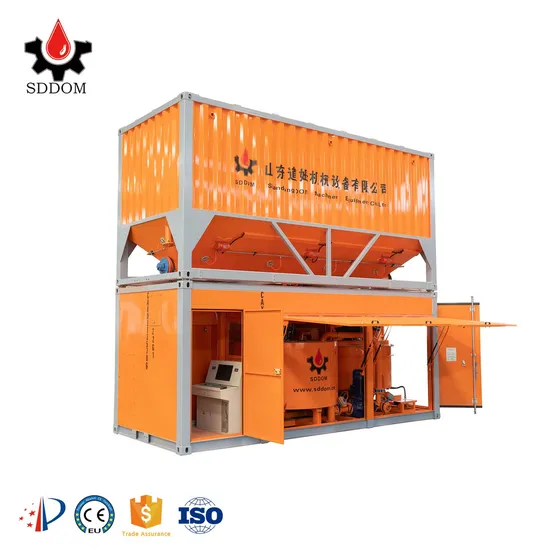

CE Tecniwell Jet- Grouting cement and water mixing machine 30m3/h grout mixer agitator pump plant
Features Grout Mixing Plant is special designed for cement and water mixed project. Its advantage is continuous mixing.
Full auto control system with SIEMENS PLC, main electric parts are SIEMENTS/Schneid brand. Container design can be shipped as container to save shipping fees. Container cement silo can be on top of container to supply cement.
Customized design is completelty accepted as per client's requirement, we have already customized for clients from different regions including Singapore, Australia, Malaysia, Hongkong, Israel and so on, especially for the offshore engineering project in Korea, Jalan and Myanmar.
Main parts

Name	Qty
Mixing system	1 set
Temporary agitator system	1 set
Centrifugal mortar pump	1 set
Water tank	1 set
Additive system	1 set
Pneumatic system	1 set
Control system	1 set
Container frame	1 set

Main Technical data

Name	Grout mixing plant
Model	CSM40
Material	Carbon steel (Thickness mixing tank-8mm, Agitator tank-6mm)
Capacity	40m3/h
Total Power	48KW
Max.Pumping height	25m
Max. Pumping distance	250m
Grout pump	Horizontal centrifugal pump, pressure 0.25Mpa
Transport	As one 20 GP container
Size	605824382591mm
Weight	6.8 ton

Shipment
