Five bars/ aluminum tread plate/aluminum diamond plate/aluminium checkered plate sheet 3mm 6mm thick aluminium plate

Product Description

Five bars/ aluminum tread plate/aluminum diamond plate/aluminium checkered plate sheet 3mm 6mm thick aluminium plate

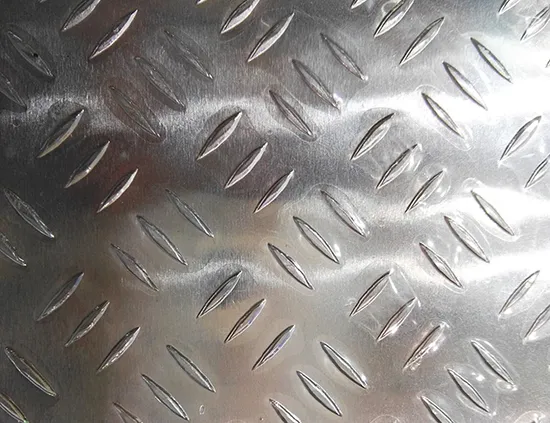

Aluminum diamond plate, sometimes called aluminum tread plate, aluminum floor plate, or aluminum checker plate, is available in 6061-T6 and 3003-H14 sizes. The 6061-T6 alloy can have a dull or shiny finish and is harder and more durable, and the 3003-H14 has shiny bright finish, and is softer and more formable. Aluminum tread plate is commonly seen on fire trucks and truck toolboxes.

Checkered Aluminum Plate
Product	Checkered Aluminum Plate
Pattern design	Big Five Bar,Small Five Bar,Diamond, Lentil Patterm Etc.
Quality standard	Mill Finish, No Stains, Without Rough Selvedge,Cold Rolled, Hot Rolled, Totally free from defects like white rust,adge damage, camber, dents, holes, break lines, scratches.
Production Process	Cold Rolled, Hot Rolled
Alloy series	1050,1060,1070,1100,3003,3003,5005,5052
Temper	O,H14,H16,H18,H22,H24,H26,H32,H34,H112 T4,T651 Etc.
Thickness	0.7mm - 6.0mm
Width	500mm - 1600mm
Package	Export wooden pallets, Craft paper, Anti-Blushing Agent.
Delivery Time	Future goods: 20-30 Work days, Ready Stock:7-10 days.
Application	Refrigerator, air conditioner, car, platform, packing tube, screen frame, various hanging beam, table leg, handle, cable slot and cover, chair, etc.
Kind Attention	Specification can be customized as the customer's requirements.

Sizes range for aluminum flooring plate

Alloy	Temper	Size range (mm)
		Thickness	Width	Length
1050A, 1200	F	1.5-2.4	800-1500	1000-6000
		2.0-6.0	800-1500	1000-8000
	F, H114	1.5-2.0	900-1600	1000-4000
		2.0-8.0	900-2000	1000-9000
5251, 5052, 5754	H114, H224	1.5-2.4	800-1500	1000-6000
		2.4-6.0	800-1500	1000-8000
	F, H114,H224	1.5-2.0	900-1600	700-4000
		2.0-7.0	900-2000	1000-9000
	F, H114	7.0-8.0	900-2000	1000-9000
5154A	F, H114	2.0-6.0	900-1600	1000-9000
5086,5083	F, H114, H224, H116	2.0-6.0	900-1600	1000-9000
6061, 6082	F, 0, T4, T6	1.5-2.0	900-1250	700-4000
		2.0-3.5	900-1600	1000-4000
	F, 0	2.0-3.5	1600-2000	1000-4000
	F, 0, T4, T6	3.5-4.83	900-1250	1000-4000
		3.5-4.83	1250-2000	1000-4000
	F, 0	4.83-6.35	900-2000	1000-4000
3003	H224	1.5-2.0	800-1524	1000-4000
		2.0-2.4	800-1524	1000-6000
		2.4-6.35	800-1524	1000-8000

Sizes range for aluminium tread coil

Alloy	Temper	Size range (mm)
		Thickness	Width	Diameter
				Inside	Outside
5251, 5052, 5754	H114, H224	1.5-3.0	800-1500	500, 610	Max.1600
		3.0-6.0	800-1500	750	Max.1600
	F, H114, H224	3.0-7.0	1250-2000	600	Max.1800
	F, H114	7.0-8.0	1250-2000	600	Max.1800
5154A, 5086, 5083	F, H114	3.0-6.0	1250-2000	600	Max.1800
1050A, 1200, 3003	F, H114	3.0-8.0	1250-2000	600	Max.1800
3003	H224	1.42-3.1	800-1524	500, 610	Max.1600

Chemical Properties(WT.%)

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	impurities	Al	note
1050	<0.25	<0.40	<0.05	<0.05	<0.05		<0.05	<0.03	Other, each 0.03	>99.5	V<0.05
1060	<0.25	<0.35	<0.05	<0.03	<0.03		<0.05	<0.03	Other, each 0.03	>99.6	V<0.05
1070	<0.20	<0.25	<0.04	0.03	0.03		0.04	0.03	Other, each 0.03	>99.7	V<0.05
1100	Si +Fe <0.95		0.05-0.20	<0.05			<0.10		Other, each 0.03	>99.00	V<0.05
3003=АМц	<0.6	<0.7	0.05-0.20	1.0-1.5			<0.10		Other,each 0.05, total 0.15
3004	<0.30	<0.7	<0.25	1.0-1.5	0.8-1.3		<0.25		Other,each 0.05, total 0.15
3105	<0.6	<0.7	<0.30	0.30-0.8	0.20-0.8	<0.20	<0.4	<0.10	Other,each 0.05, total 0.15
5052=АМг2.5	<0.25	<0.40	<0.10	<0.10	2.2-2.8	0.15-0.35	<0.10		Other,each 0.05, total 0.15
5083=АМг4.5	<0.40	<0.40	<0.10	0.40-1.0	4.0-4.9	0.05-0.25	<0.25	<0.15	Other,each 0.05, total 0.15
6061=АД33

Properties of Aluminum tread plates
Aluminum tread plates ccording to the different classification of aluminum sheet alloy
1) the general tread aluminum alloy plate: 1060 aluminum plate for the plate from the processing of aluminum alloy pattern plate, able to adapt to the normal environment, low prices. Usually cold storage, flooring, packaging and more use of this pattern aluminum sheet.
2)Al-Mn alloy tread plate: 3003 as the main raw material processing, the aluminum plate, also known as rust-proof aluminum, the strength is slightly higher than the ordinary aluminum alloy pattern plate, with a certain anti-rust properties, but the hardness and corrosion resistance Less than 5,000 series of pattern plate, so the product is not strictly used in the anti-rust, such as truck models, cold storage floor.
3)aluminum-magnesium alloy tread plate: 5052 or 5083, such as 5000 series of aluminum as raw material processing, with good corrosion resistance, hardness, anti-rust performance. Usually used in special places, such as ships, cars lights, humid environment, the high hardness of aluminum, a certain load-bearing capacity.
In accordance with the different patterns of aluminum plate classification: pattern plate has a bar, two bars, three bars and five bars.
Packaging & Shipping 1) The aluminum pan is placed on a wooden pallet or wooden box, wrapped perfectly with waterproof craft paper, and then fixed with a narrow strip of iron.
2) Port: Port: Qingdao, Shanghai or your request
3) Container: 20 ft GP: 5988 mm (length) x 2352 mm (width) x 2393 mm (height), loaded 18 to 25 tons.
40 feet GP: 12032 mm (length) x 2352 mm (width) x 2393 mm (height), loading 20 to 28 tons.
About haomei
Haomei Aluminum is a professional aluminum diamond plate manufacturer, mainly produces series-1, series-3, series-5, series-6 and series-8 pure aluminium and aluminium alloy plate/sheet/coil/strip/circle, etc, such as hot -rolled thick plate for molding, aluminium sheet for metal cap, aluminium circle/disc for cookware, aluminium strip for transformers, aluminum flooring plate ,aluminium tread/checkered plate, aluminium drilling entry for PCB, aluminium household foil, and so on. We have been exporting to US, UK, Italy, Germany, Netherlands, Bulgaria, Brazil, Chile, Thailand, Vietnam, Ghana, etc.

---
